NT080M-QK-CB - Datasheet
MBA
Category Information

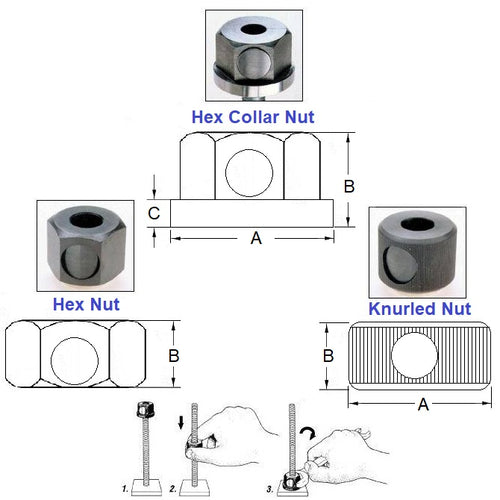

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : M8 (8x1.25mm)
- Diameter (A)
28.00
mm
(Equiv. 1.102 in.) - Height (B) 19.00 mm
- Load Rating 2925 kg
- Torque 16.92 Nm

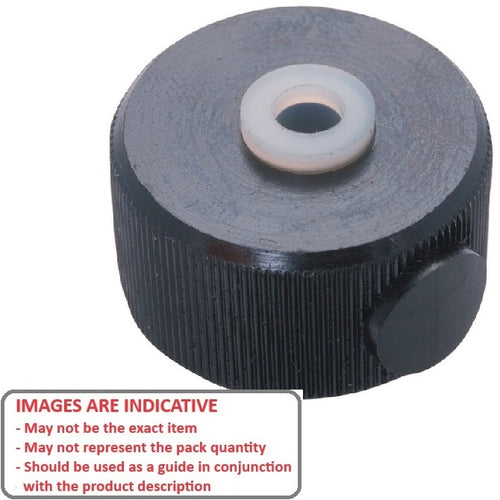

- Type Knurled Round
Product Compliance and Data
Additional Resources
Cross References
- FKN708
- FKN-708
