NT100M-QH-CB - Datasheet
MBA
Category Information

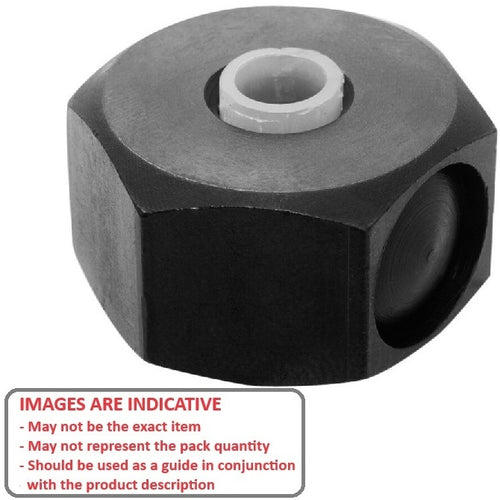

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data

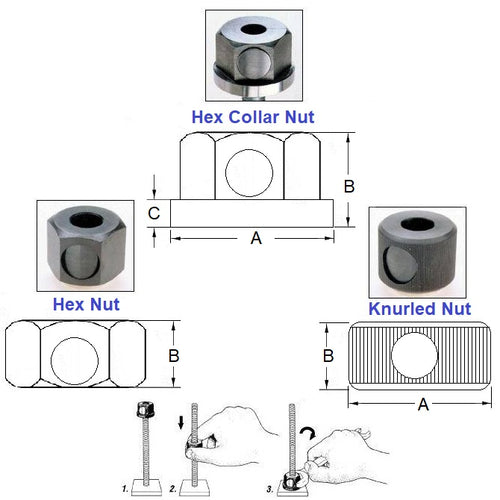

- Thread Size : M10 (10x1.5mm)
- Across Flats (A/F)
26
mm
(Equiv. 1.024 in.) - Height (B) 16.00 mm
- Load Rating 3915 kg
- Torque 26.57 Nm
- Type Hex
Product Compliance and Data
Additional Resources
Cross References
- FHN-710
- FHN710
