NT080M-QC-CB - Datasheet
MBA
Category Information
Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : M8 (8x1.25mm)

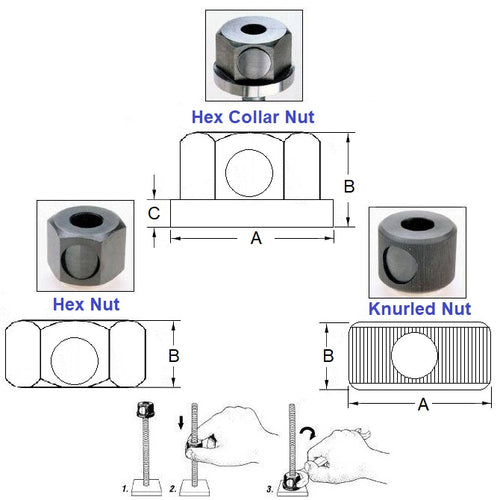

- Across Flats (A/F)
26
mm
(Equiv. 1.024 in.) - Height (B) 20.50 mm
- Flange Thickness (C) 4.50 mm
- Load Rating 2925 kg
- Torque 16.92 Nm

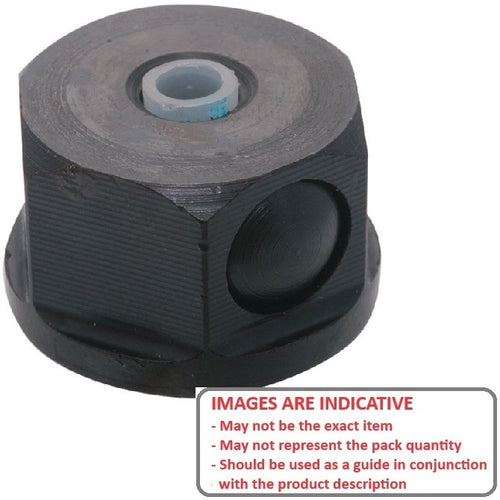

- Type Hex with Collar
Product Compliance and Data
Additional Resources
Cross References
- FCN-708
- FCN708
