NT060M-QK-CB - Datasheet
MBA
Category Information

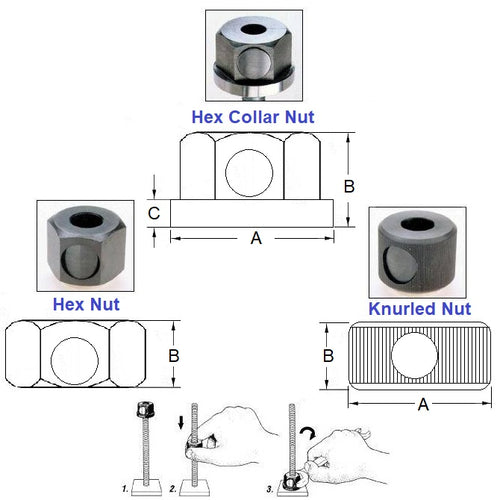

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : M6 (6x1mm)
- Diameter (A)
26.00
mm
(Equiv. 1.024 in.) - Height (B) 14.50 mm
- Load Rating 940 kg
- Torque 10.78 Nm

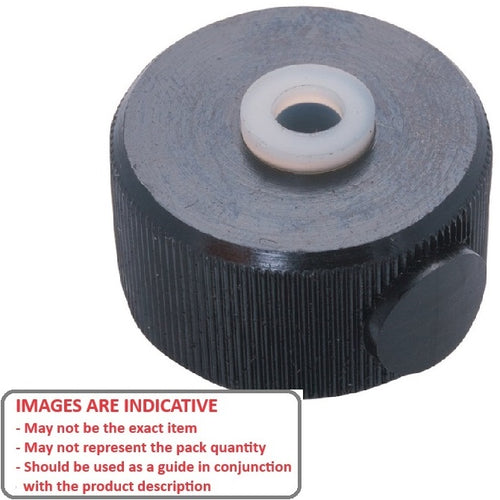

- Type Knurled Round
Product Compliance and Data
Additional Resources
Cross References
- FKN-706
- FKN706
