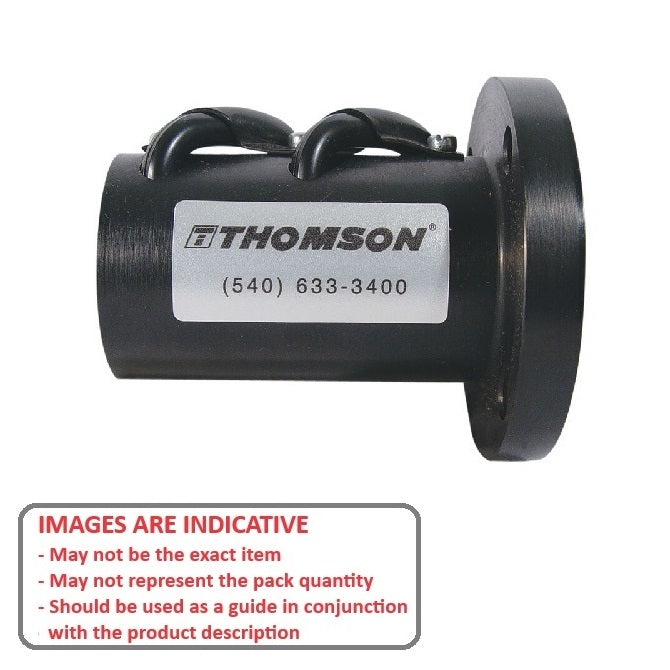

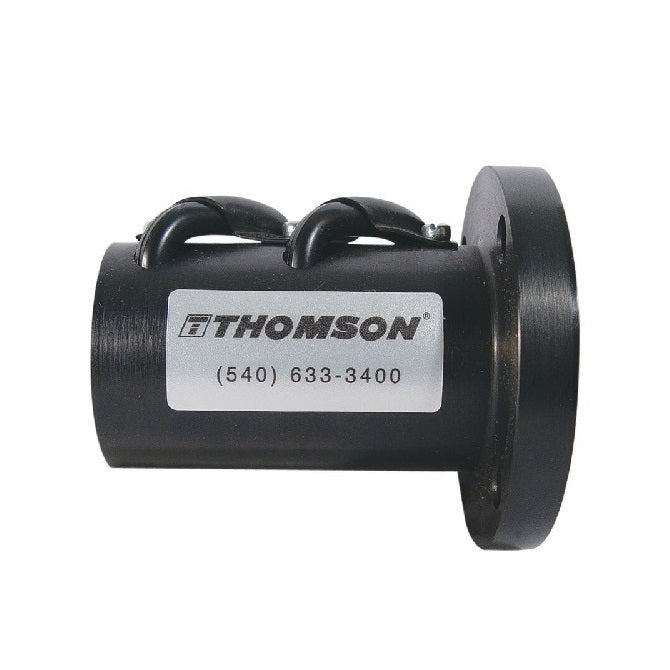

TBS427RS - Datasheet

Thomson Saginaw

Category Information

Ballscrew - Nuts - Thomson Saginaw

Thomson Saginaw Nuts Ballscrew. Ball Nuts to Suit Thomson Saginaw ball screws. Match all components within the Thomson Saginaw range only.

  • Ballscrews and ballnuts are essential components used in various engineering and industrial applications where precise linear motion and high efficiency are required.
  • Ballscrews are used in motion control systems, positioning systems, machine tools, industrial automation, aerospace, defence, medical devices and semi-conductor equipment.
  • An expanded range may be available on special order. Please enquire.
  • All Right hand thread only.

Product Data

  • Type : Non-Preloaded - Integral Flange
  • Suits Ball Circle Dia. 25.40
  • Suits Lead 6.35

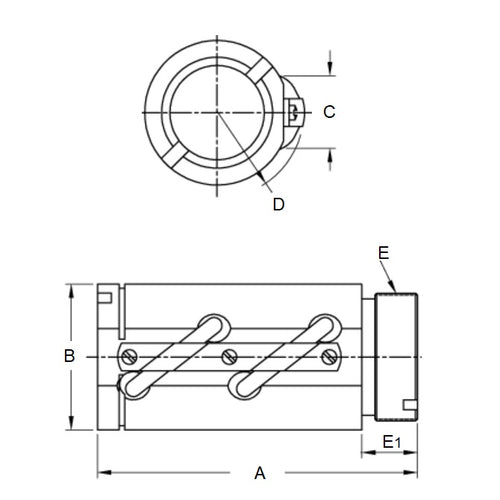

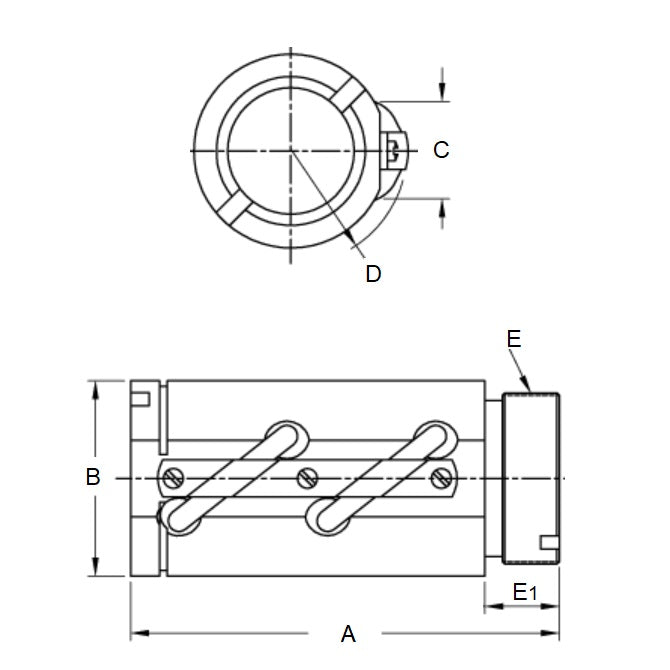

  • Length (A) 76.20
  • Diameter (B) 41.28
  • Static Load 12622
  • Dynamic Load 1462
  • More Information Flange Diameter 70.10mm / Thickness 9.53mm
  • More Information For more information contact us.
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • TBS427
    • TBS-427
