CP-SLV-G-CT-83 - Datasheet
MBA
Category Information
Couplings - Crowned Tooth Gear - SleevesSleeves Crowned Tooth Gear Couplings. Match with hubs from the hubs category
- An expanded range may be available on special order. Please enquire.
- +/- 1.02 mm Axial Displacement.
- 0.41mm Parallel offset per hub.
- 1o Angular Displacement.
- Free axial movement. 19.55 to 88 Nm. 8500 to 14000 rpm.
- High torque / low inertia.
Product Data

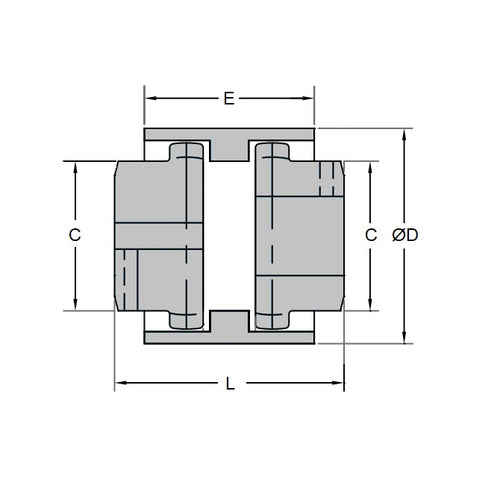

- Bore : N mm
- Bore Match OD with Hub mm
- Sleeve OD
82.6
mm
(Equiv. 3.252 in.) - Sleeve Length (G) 48.26 mm

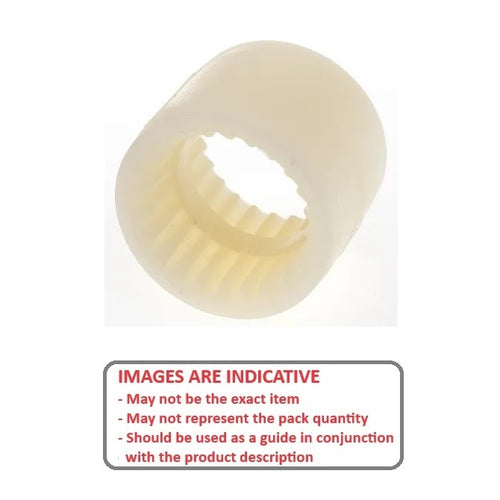

- Description Sleeve Only
- Max Speed 6700 RPM
- Max Torque 1388 n.m
- Hub Length (E) 82.550 mm
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- GU-405
- GU405
