CMB038-19-080M-N60 - Datasheet
MBA
Category Information

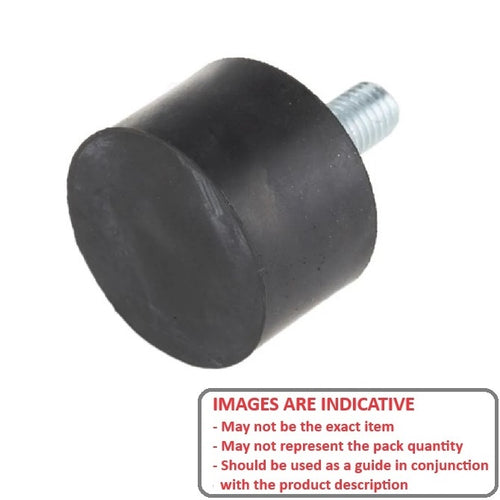

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

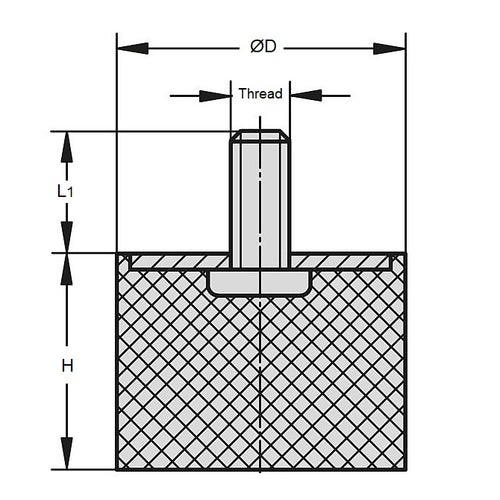

- Nom. Body Diameter (D) : 38.0 mm
- Body Height (H) 19.0 mm
- Thread Size (G) M8x1.25
- Shore Hardness 60
- Thread Length (L1) 16.0 mm
- Compression Load 50 Kg
- Max Shear Load 3.15 Kg
- Material Nitrile Rubber NBR
