SC025M-014-FN-SL-S4 - Datasheet

MBA

Category Information

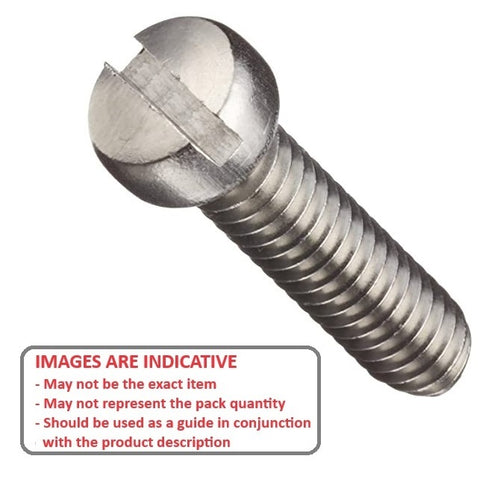

Screws - Fillister Head - Slotted - 304 Stainless

304 Stainless Slotted Fillister Head Screws. Metric - UNC - UNF

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.
  • DIN 84

Product Data

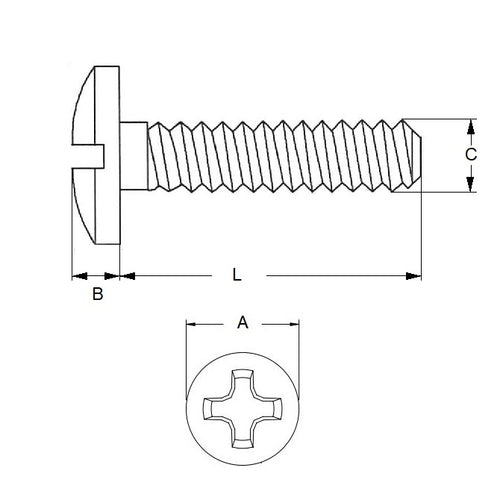

  • Thread Size (C) : M2.5 (2.5x0.45mm)
  • Thread Length (L) 14 mm
    (Equiv. 0.551 in.)
  • Material 304 Stainless
  • Max Head Diameter 4.5 mm
  • Max Head Height 1.6 mm
  • Type Narrow Cheese Head / Slotted
  • Pitch 0.400 mm
  • Threads Per Inch 63.5 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91800A617
