MAG-D-10-002-ECO - Datasheet

MBA

Category Information

Magnets - Rare Earth - Plated

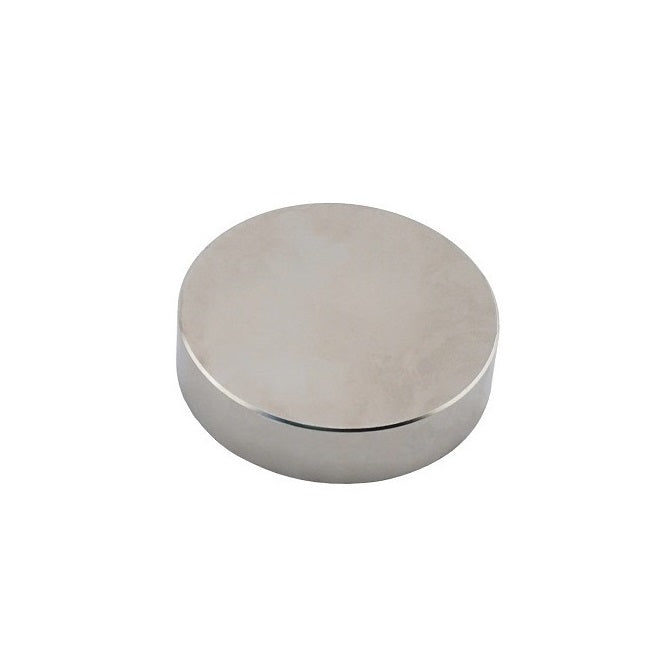

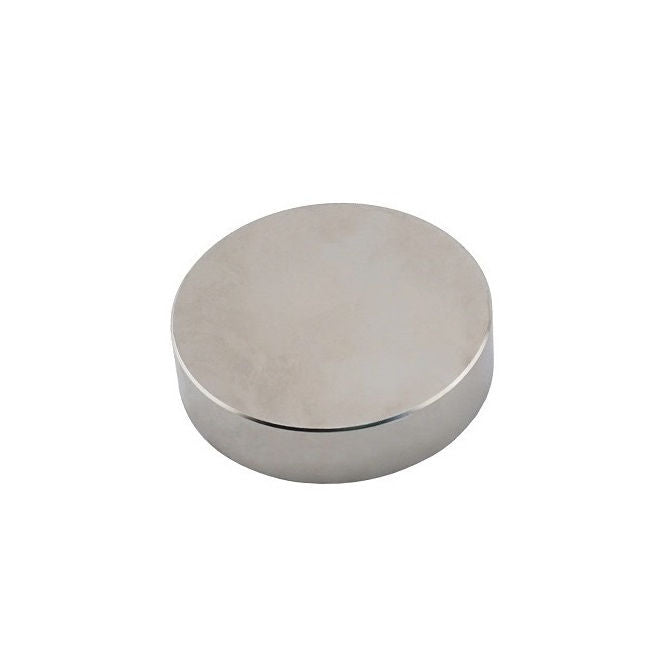

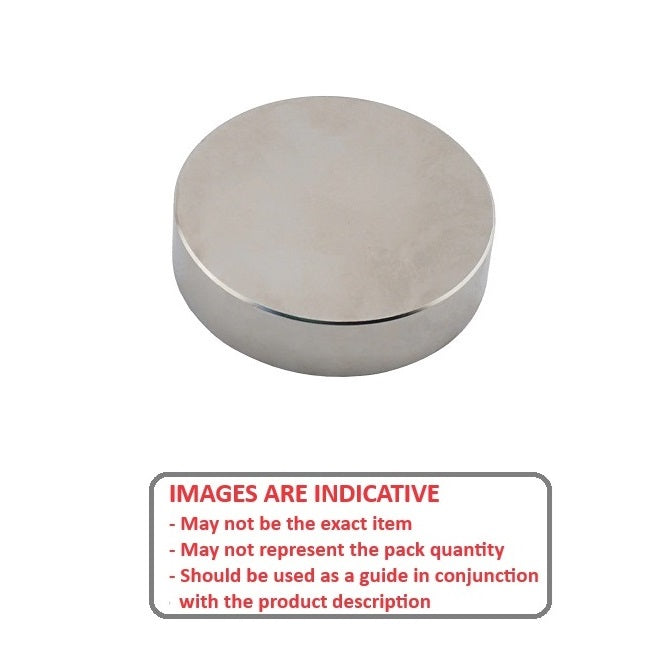

Plated Rare Earth Magnets. Incredibly strong attraction and repulsion. Neodymium-Iron-Boron encased in nickel jackets to protect the brittle magnet material and prevent corrosion.

  • High strength to weight ratios.
  • Commonly used in miniature applications such as linear actuators, sensing applications, gyroscopes, flow meters, recording devices, pacemakers and alternators.
  • Temperature range -73 oC to 93 oC.
  • Size tolerances +/- 0.13

Product Data

Slight imperfections in the surface finish. These are economy magnets.

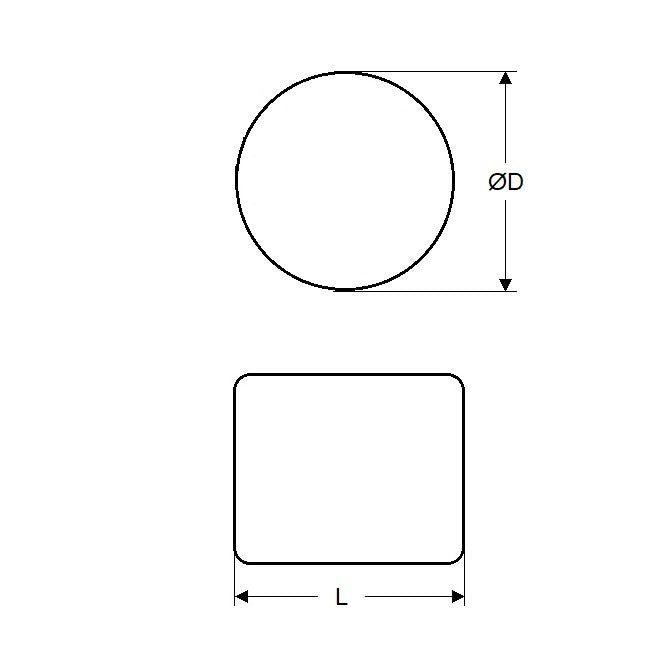

  • Diameter (A) : 10.0 mm
    (Equiv. 0.394 in.)
  • Thickness / Length (B) 2.00 mm
    (Equiv. 0.079 in.)
  • Type Neodymium
  • Basic Shape Disk
  • Approx Max. Pull Unspecified - Economy Range kg
  • Material Neodymium
Country of Origin: AU
