SS080MF-0074-TG5-FT - Datasheet
MBA
Category Information

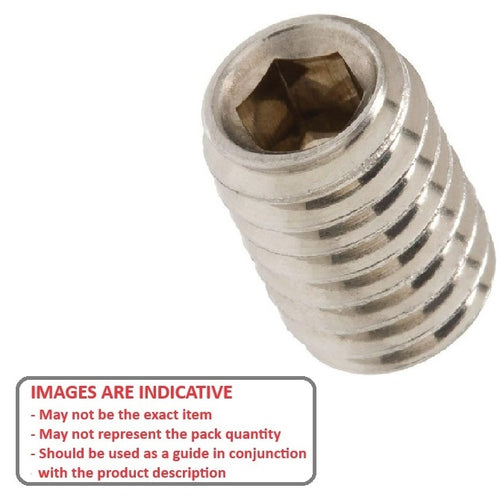

Socket Set Screws - Flat Tip DIN913 - Titanium Ti-Gr5 Ti-6Al4v DIN913Titanium Ti-Gr5 Ti-6Al4v DIN913 Flat Tip DIN913 Socket Set Screws. Standard DIN913 grub screws with flat end. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- Used in critical aircraft structural components. UNS R56400.
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
Product Data
- Thread Size : M8 Fine (8x1mm)
- Thread Length (L)
7.4
mm
(Equiv. 0.291 in.) - Type Flat Tip
- Hex Key Size 4.00
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Titanium Ti-Gr-5 - 6AL-4V
Product Compliance and Data
