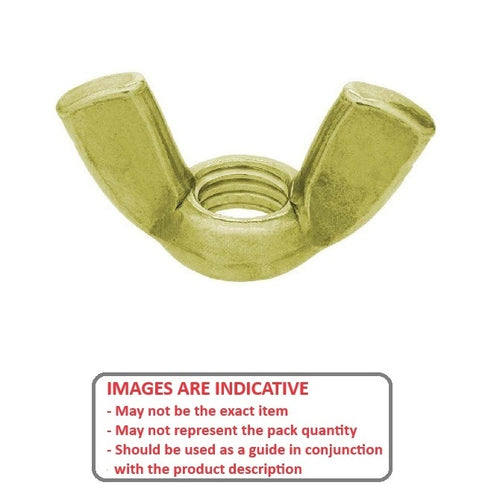

NT080M-WG-BR - Datasheet

MBA

Product Data

• Thread Size : M8 (8x1.25mm)
• Body Height (D) 5.6 mm
• Wing Width 30.0 mm
• Overall Height (C) 14.6 mm
• Pitch in mm / Threads Per Inch 1.250 mm / 20.32 TPI
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Hitech BRWNB8
• Hitech BRWNP8
