SC080M-080-B-SK-CZ - Datasheet

Brighton Best

Category Information

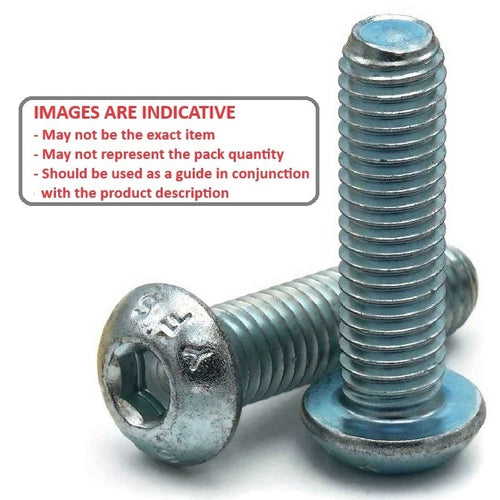

Screws - Button - Socket - Zinc Plated

Zinc Plated Socket Button Screws. UNC - UNF - METRIC.

  • An expanded range may be available on special order. Please enquire.
  • Imperial Sizes to ANSI B18.3.
  • Metric Sizes to DIN7380.

Product Data

  • Thread Size (C) : M8 (8x1.25mm)
  • Thread Length (L) 80 mm
    (Equiv. 3.15 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 14.0 mm
  • Max Head Height 4.4 mm
  • Hex Key (D) 5.00 mm
  • Pitch 1.250 mm
  • Threads Per Inch 20.32 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best 889126
