SS080M-0080-TG5-C - Datasheet
MBA
Category Information

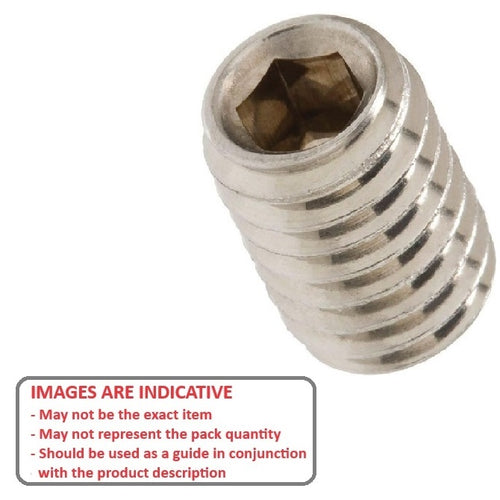

Socket Set Screws - Standard Cup Point - Titanium - Ti-Gr5 Ti-6Al4v DIN916Ti-Gr5 Ti-6Al4v DIN916 Titanium Standard Cup Point Socket Set Screws. Standard DIN916 grub screws with cup point. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- Used in critical aircraft structural components. UNS R56400.
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
Product Data

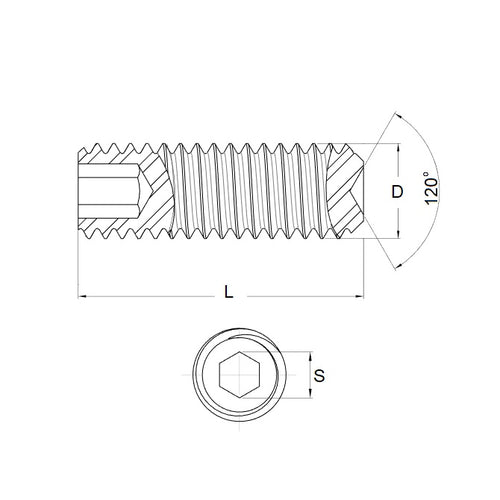

- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
8.0
mm
(Equiv. 0.315 in.) - Type Standard Cup Point
- Hex Key Size 4.00 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Titanium Ti-Gr-5 - 6AL-4V
