SS080M-0080-TC1 - Datasheet

MBA

Category Information

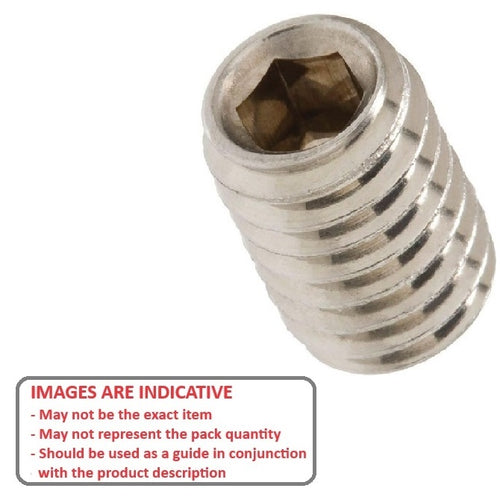

Socket Set Screws - Standard Cup Point - Titanium - CP Grade 1 DIN916

CP Grade 1 DIN916 Titanium Standard Cup Point Socket Set Screws. Standard DIN913 grub screws. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm². Yield Strength 17.6 kgf/mm². Elongation 24 Percent.

Commercially pure for general industrial corrosion applications. UNS R50250.
Widely used in power generation, chemical processing, aerospace and medical applications.
Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Thread Size : M8 (8x1.25mm)
Thread Length (L) 8.0 mm
(Equiv. 0.315 in.)
Type Standard Cup Point
Hex Key Size 4.00 mm
Pitch 1.250 mm
Threads Per Inch 20.32 TPI
Material Titanium - CP1 Commercially Pure

Country of Origin: US
