NT080M-HX-CZ - Datasheet
MBA
Category Information

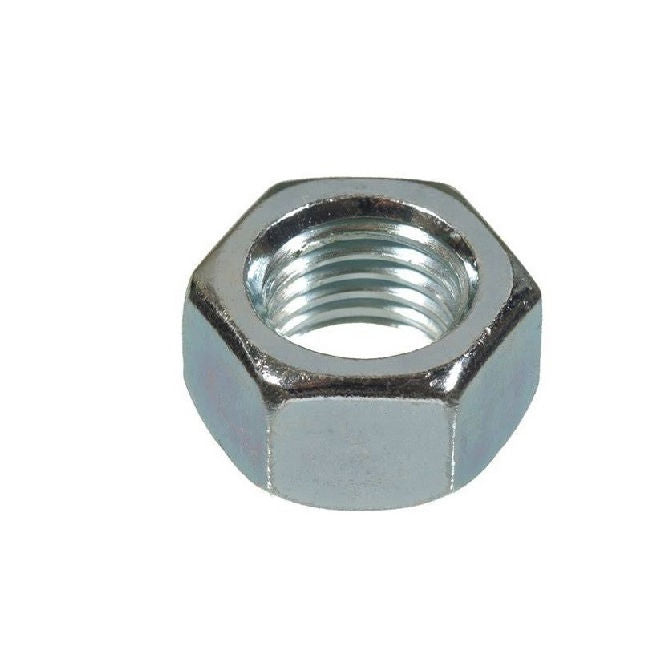

Nuts - Hexagonal - Full - SteelSteel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M8 (8x1.25mm)
- Thickness (H)
6.2
mm
(Equiv. 0.244 in.) - Across Flats (A/F)
13.00
mm
(Equiv. 0.512 in.) - Type Standard
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Steel - Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MicroFast HNM080
- Hitech MSHNZP8
