SC080M-050-P-PZ-CZ - Datasheet
MBA
Category Information

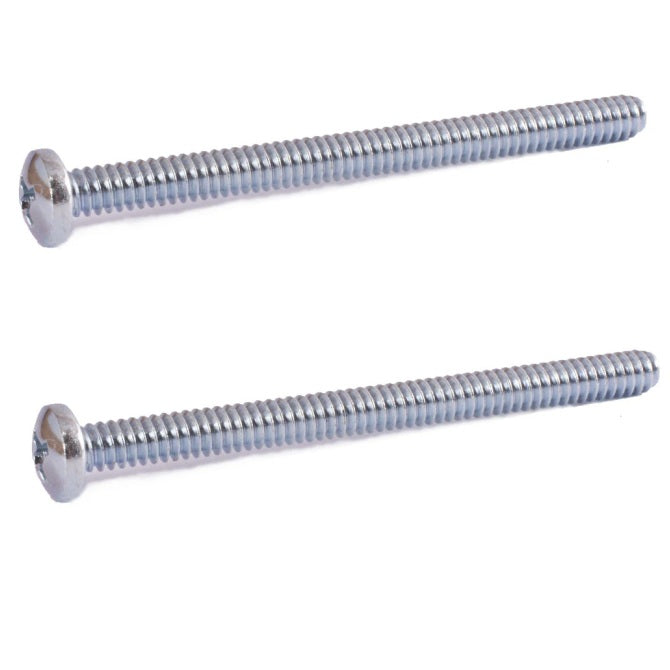

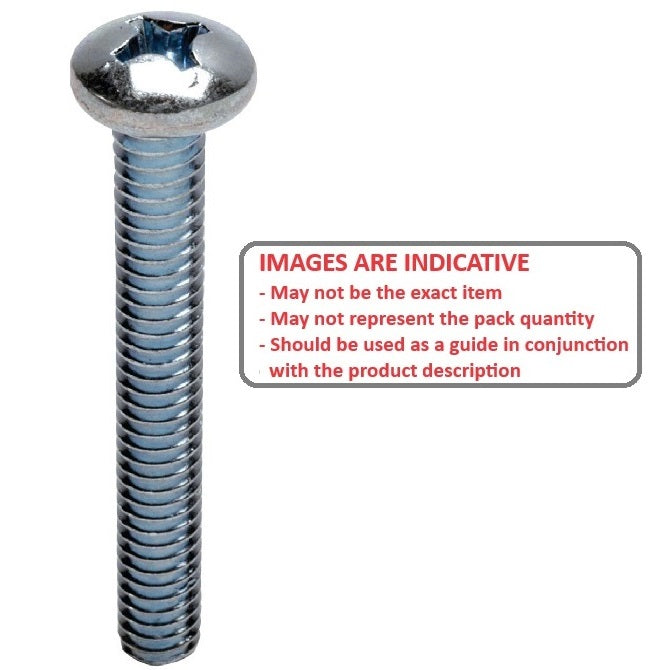

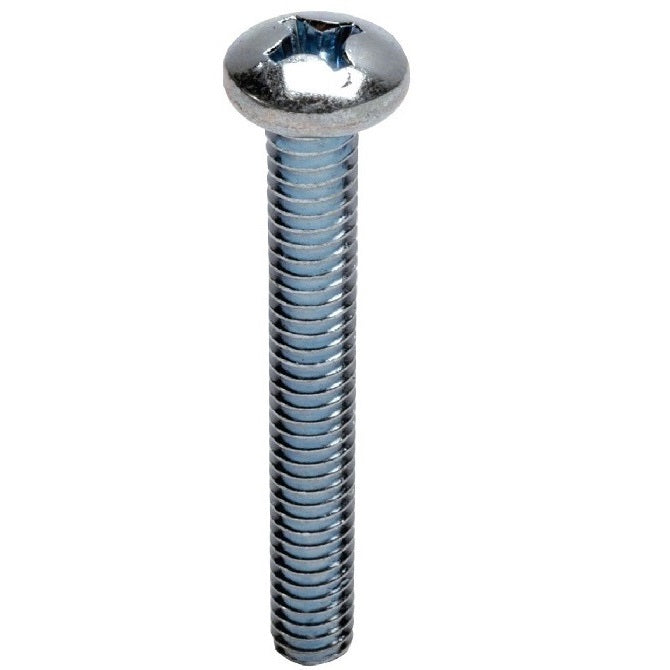

Screws - Pan Head - Pozidrive SteelPozidrive Steel Pan Head Screws. Metal Thread Screws. Metric only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

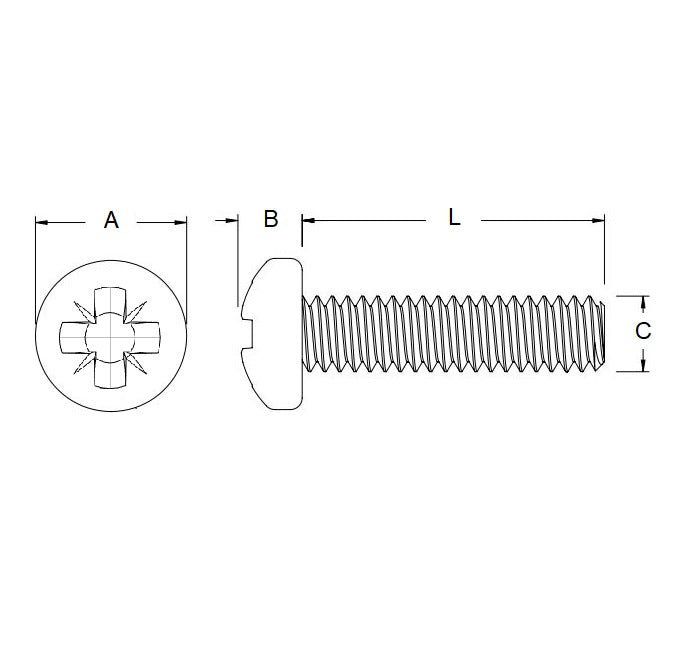

- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (L)
50
mm
(Equiv. 1.969 in.) - Material Zinc Plated Steel
- Max Head Diameter 16.0 mm
- Max Head Height 6.0 mm
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSP-ZZP850
- MSPZZP850
