Miniature Bearings Australia
SC080M-050-H-CZ - Datasheet
MBA
Category Information
Screws - Hex Head - Steel Zinc PlatedSteel Zinc Plated Hex Head Screws. BSW and METRIC - Bolts
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

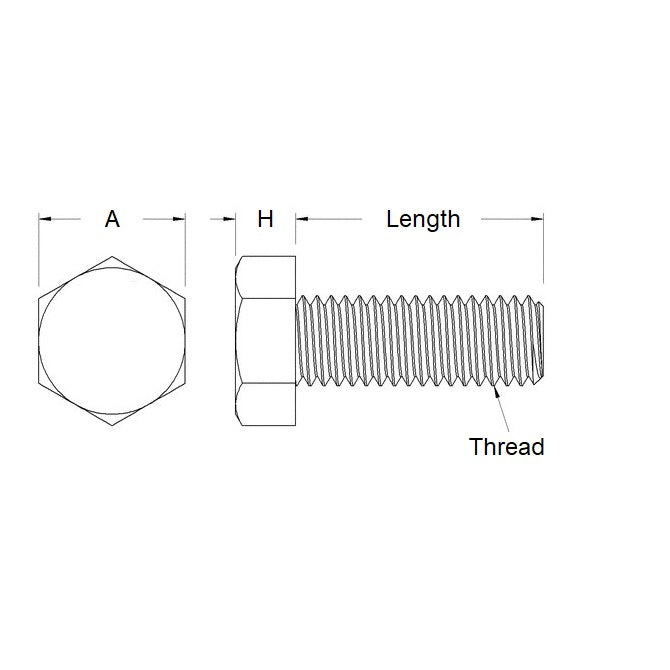

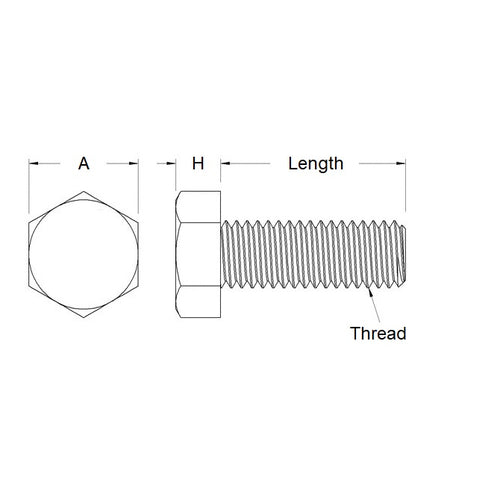

- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (L)
50
mm
(Equiv. 1.969 in.) - Material Zinc Plated Steel
- Type Bolt
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSHBNZP850
