NT080M-HX-AL - Datasheet
MBA
Category Information

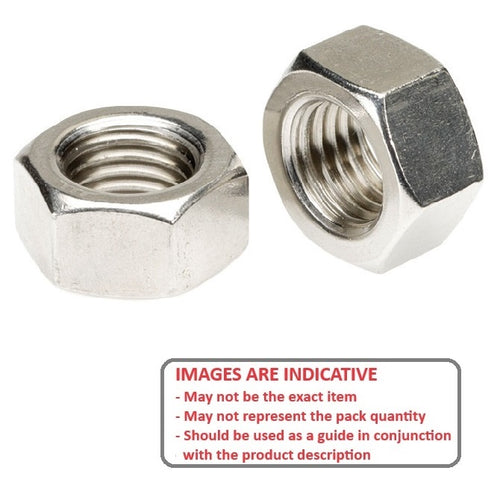

Nuts - Hexagonal - Full - AluminiumAluminium Full Hexagonal Nuts. METRIC.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M8 (8x1.25mm)
- Thickness (H)
5.5
mm
(Equiv. 0.217 in.) - Across Flats (A/F)
13.00
mm
(Equiv. 0.512 in.) - Type Hex Nut
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 91854A104
- AN-M8
- ANM8
