SC080M-040-P-SL-BR - Datasheet
MBA
Category Information

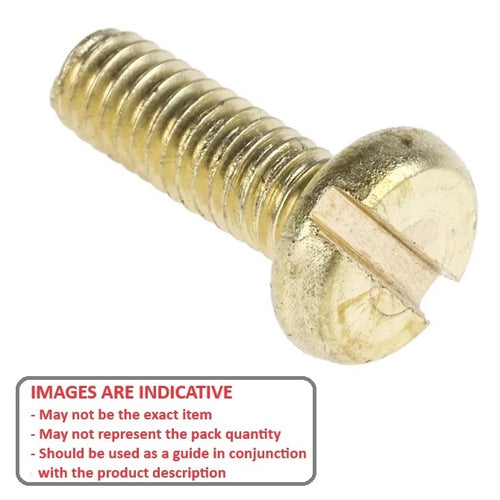

Screws - Pan Head - Slotted - BrassBrass Slotted Pan Head Screws. Brass metal thread machine screws METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (L)
40
mm
(Equiv. 1.575 in.) - Material Brass
- Max Head Diameter 16.0 mm
- Max Head Height 6.0 mm
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech BRPSP840
