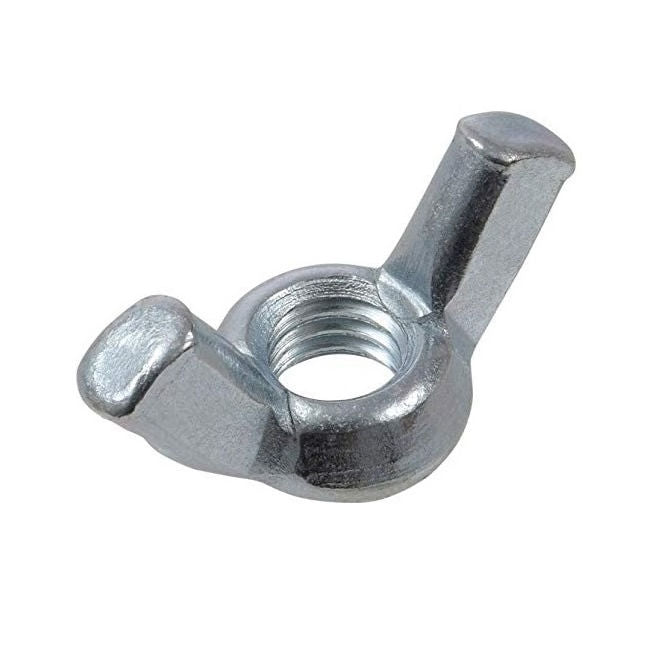

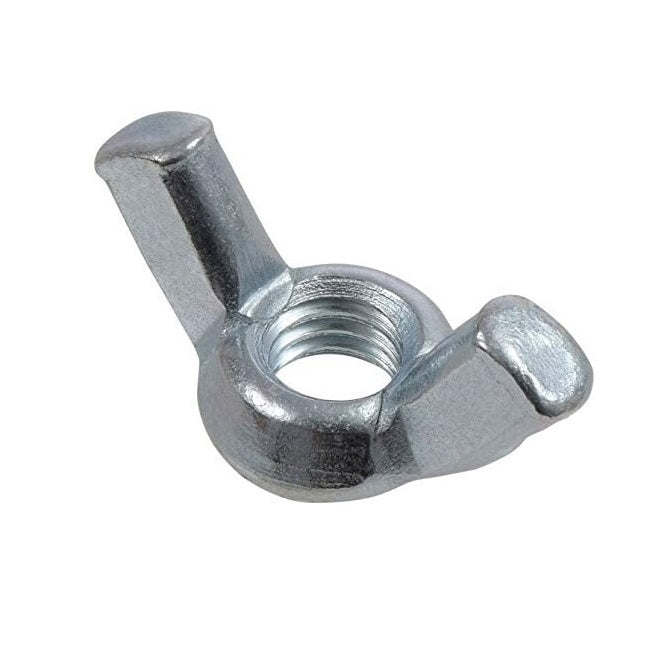

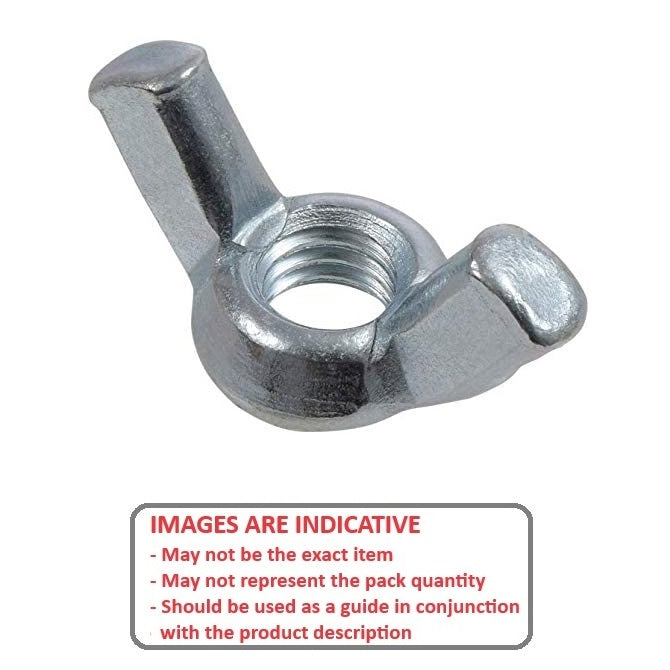

NT080M-WG-S6 - Datasheet

Brighton Best

Product Data

• Thread Size : M8 (8x1.25mm)
• Body Height (D) 5.6 mm
• Wing Width 30.0 mm
• Overall Height (C) 14.6 mm
• 1.250 mm / 20.32 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 567042
• 94543A440
