SS080M-0313-S4-S440-RB - Datasheet
MBA
Category Information

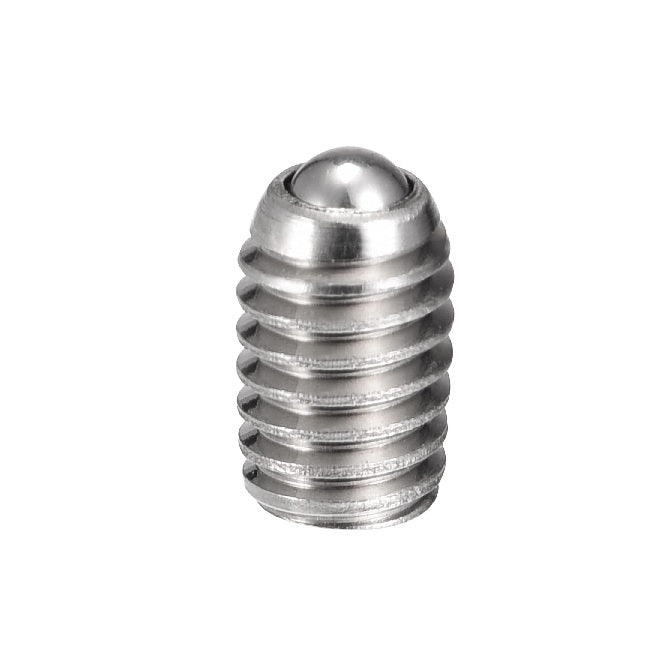

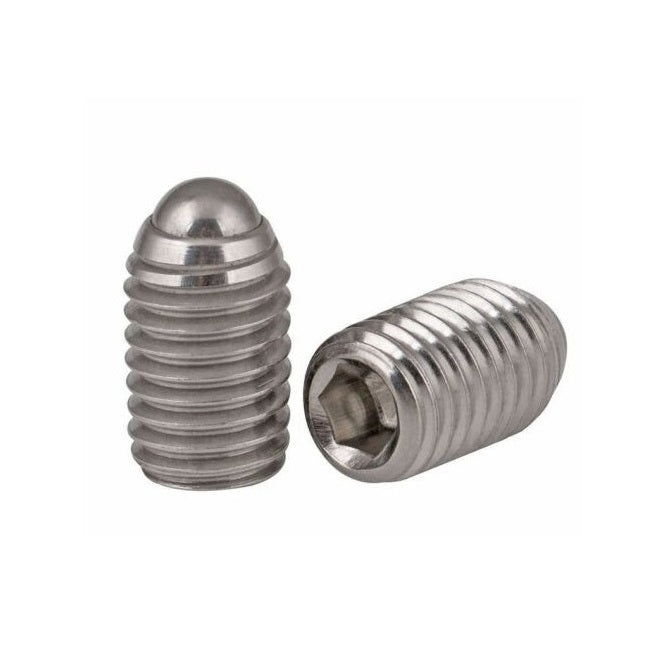

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
29.4
mm
(Equiv. 1.157 in.) - Type Rolling Ball Tip
- Overall Length (L) 31.3 mm
- Ball Diameter (D) 5.5 mm
- Hex Key Size 4.0
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.3 mm
- Threads Per Inch 20.32 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSR8X30-SUS
- BSR8X30SUS
