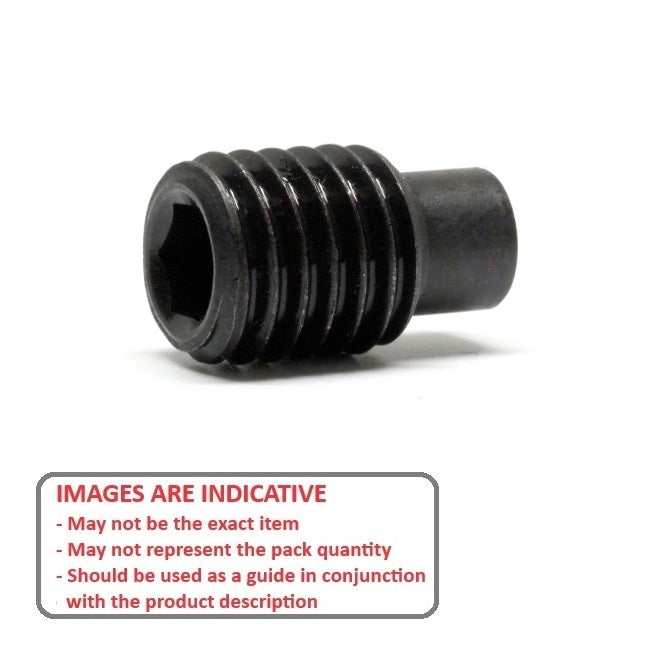

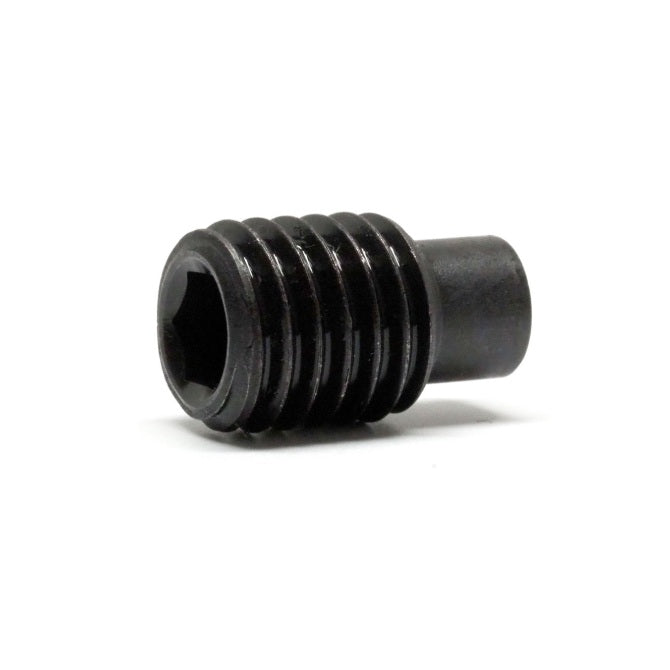

SS080M-0300-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M8 (8x1.25mm)
• Thread Length (L) 25.7 mm
  (Equiv. 1.012 in.)
• Type Dog Point
• Overall Length (L + L1) 30.0 mm
• Tip Diameter (d) 5.2 - 5.5 mm
• Tip Length (L1) 4.0 - 4.3 mm
• Hex Key Size 4.00
• Pitch 1.250 mm
• Threads Per Inch 20.32 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 833116
