SS080M-0250-AS-CP - Datasheet

SSA

Product Data

• Thread Size : M8 (8x1.25mm)
• Thread Length (L) 25.0 mm
  (Equiv. 0.984 in.)

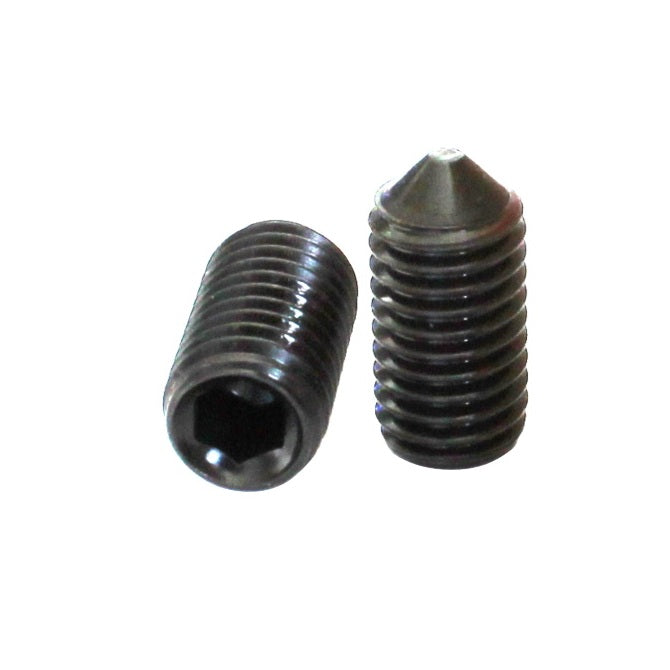

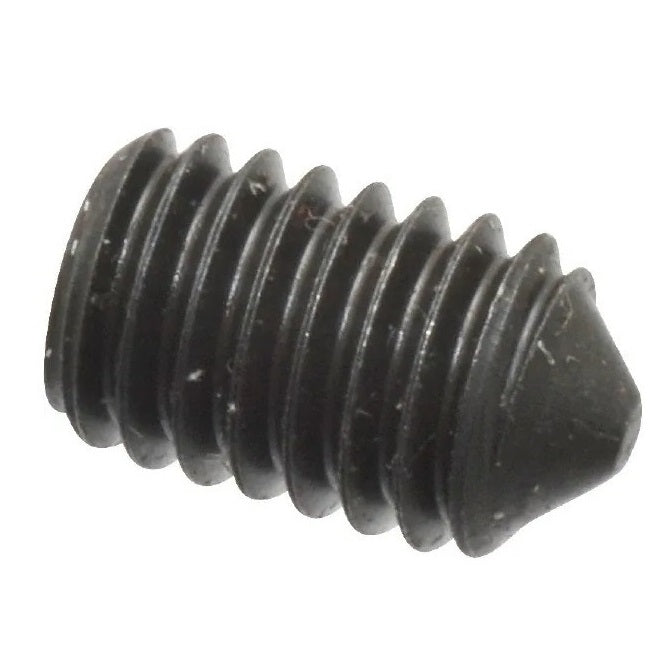

• Type Cone Point
• Hex Key Size 4.00
• Pitch 1.250 mm
• Threads Per Inch 20.32 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 831114
• 91210A437
