SS080M-0249-CS-PO-FB - Datasheet
MBA
Category Information

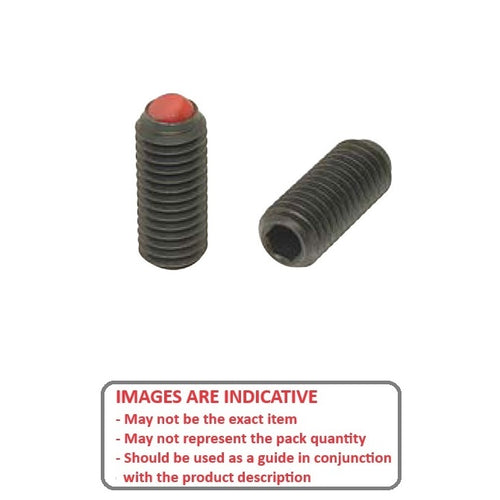

Socket Set Screws - Flat Tip Aligning - Carbon SteelCarbon Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
- Selection of tips include carbon steel, 440C Stainless steel and Polyacetal
Product Data
- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
24.9
mm
(Equiv. 0.98 in.) - Type Aligning Flat Tip
- 25.4
- Ball Diameter (D) 4.2
- Hex Key Size 4.0
- Body Material Carbon Steel
- Ball Material Polyacetal
- Pitch 1.3 mm
- Threads Per Inch 20.32 TPI
- Finish Black Oxide
- Material Carbon Steel with Polyacetal tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSFJ8X25
