SCS0800-016-B-SK-S4 - Datasheet
MBA
Category Information

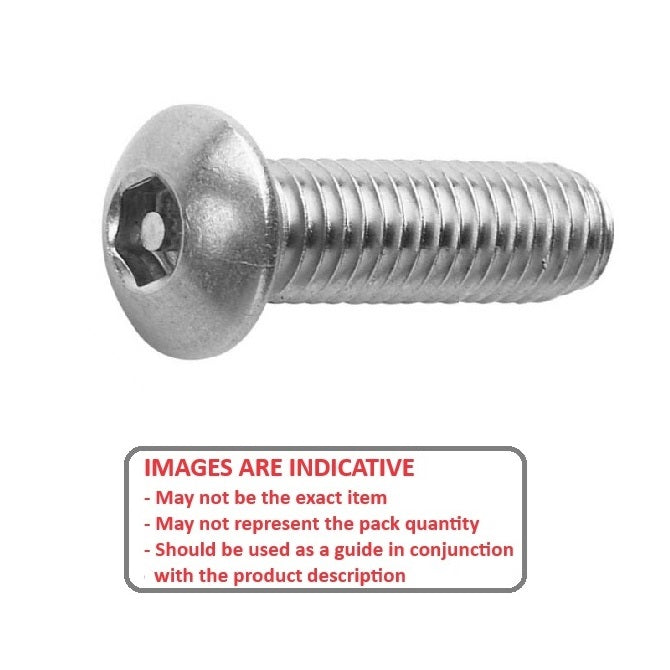

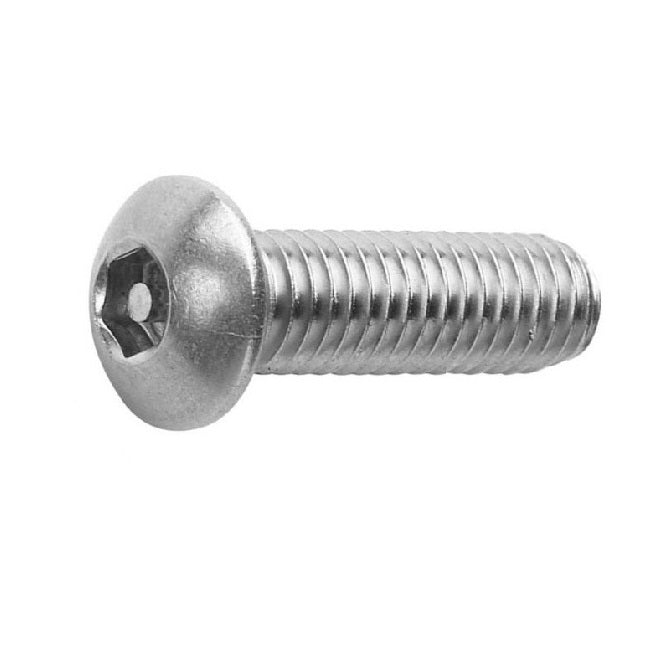

Screws - Security - Button - SocketSocket Button Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

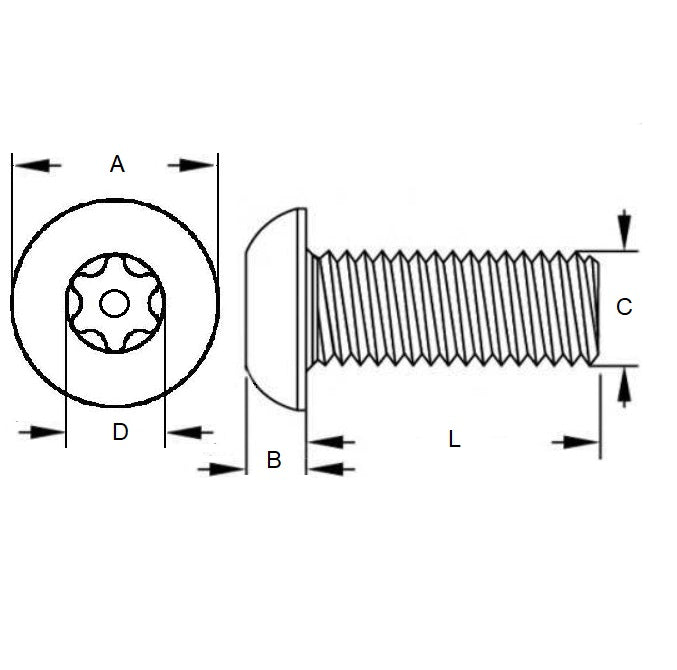

- Thread Size (C) : M8 (8x1.25mm)
- Length
16
mm
(Equiv. 0.63 in.) - Material 304 Stainless
- Power Bit to Match TL-SEC-0800-SK-PB
- Hand Key to Match TL-SEC-0800-SK-HK
- Pitch 1.250 mm
- Threads Per Inch 20.3 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MD7BM8-16
