SC080M-016-P-PH-S6 - Datasheet
Brighton Best
Category Information

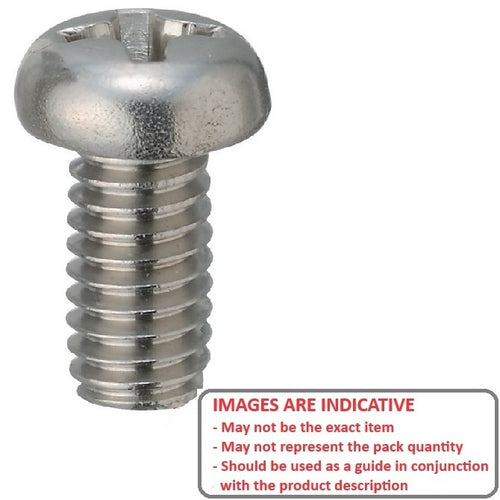

Screws - Pan Head - Phillips - 316 Stainless316 Stainless Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC - Pan, cheese, fillister and round head.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (L)
16
mm
(Equiv. 0.63 in.) - Material 316 Stainless
- Max Head Diameter 16.0 mm
- Max Head Height 6.0 mm
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 681113
- 90116A408
