SS080M-0120-S3-BT - Datasheet
MBA
Category Information

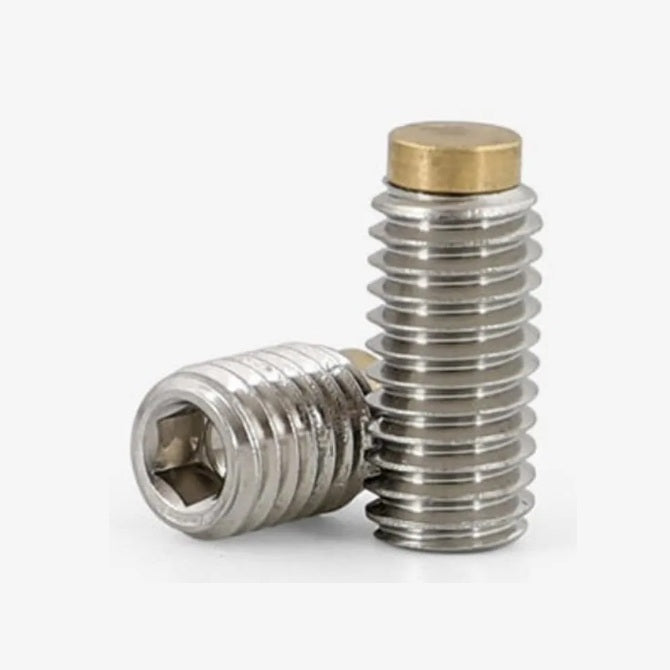

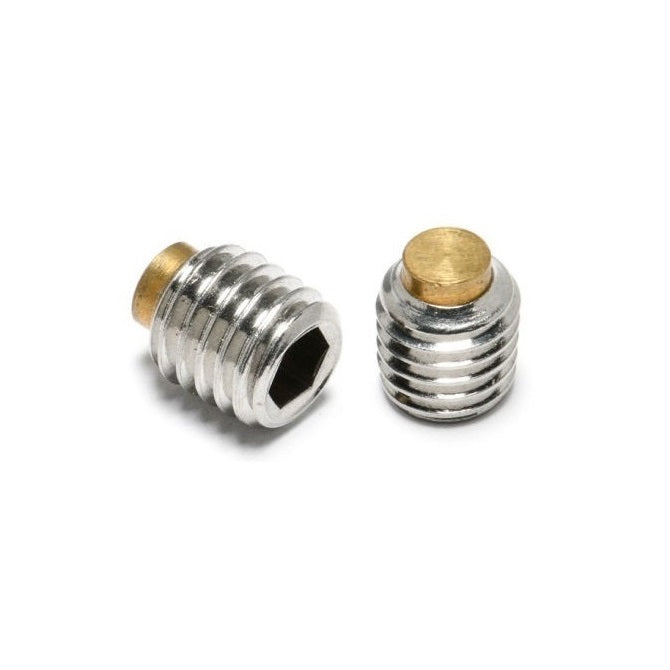

Socket Set Screws - Brass Tipped - Stainless SteelStainless Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
Product Data
- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
12.0
mm
(Equiv. 0.472 in.) - Type Brass Tipped
- Overall Length (L + L1) 13.5 mm
- Tip Diameter (d) 6.0 mm
- Tip Length (L1) 1.5
- Hex Key Size 4.00
- Pitch 1.250 mm
- Threads Per Inch 20.32 TPI
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90418A671
- GN.13971
