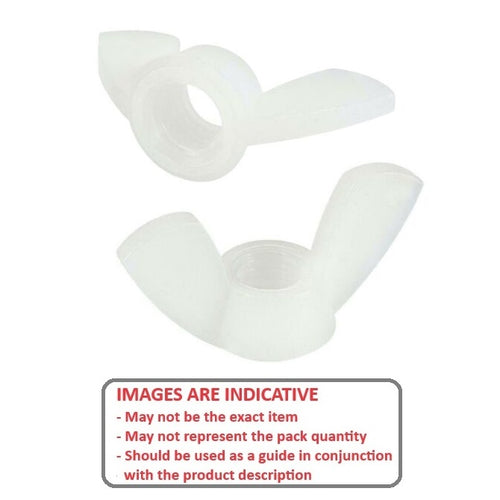

NT080M-WG-NY - Datasheet

MBA

Product Data

• Thread Size : M8 (8x1.25mm)
• Overall Length (A) 26.0 mm
  (Equiv. 1.024 in.)
• Base Diameter (B) 16.0 mm
  (Equiv. 0.63 in.)
• Body Height (D) 4.0 mm
• Overall Height (C) 13.0 mm
• Material Natural Nylon 6.6

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92124A540
• PWING-M8
• PWINGM8
