Miniature Bearings Australia
KLI-080M-120-12 - Datasheet
MBA
Category Information

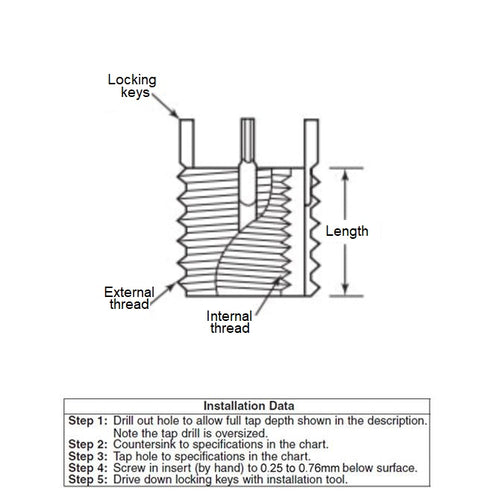

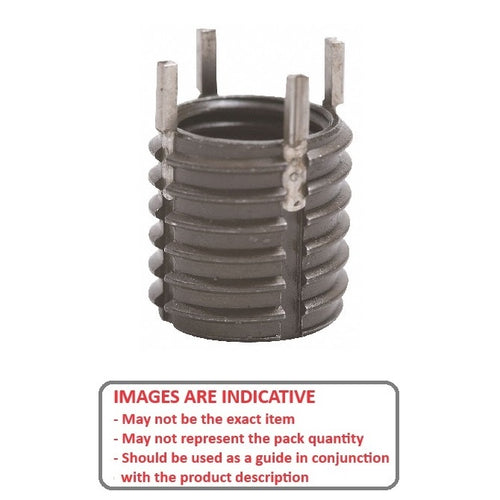

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.
- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : M8 (8x1.25mm)
- External Thread M12 x 1.25
- Length
12.000
mm
(Equiv. 0.472 in.) - Tap Drill Diameter 10.80 mm
- Countersink Diameter 12.250 mm
- Locking Keys 4
- Tapped Hole Depth 13.500 mm
- Removal Drill Size 9.500 mm
- Removal Drill Depth 4.750 mm
- Installation Tool KLI-64753RS
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 90245A173
- KLI-65953
- KLI65953
