MEB-8RS - Datasheet

MBA

Category Information

Eye Bolts - Threaded Shank - Shouldered - Carbon Steel - Standard

Standard Carbon Steel Shouldered Threaded Shank Eye Bolts. Forged self coloured carbon steel.

  • Forged self coloured carbon steel.
  • Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Shank Length 13.000 mm
    (Equiv. 0.512 in.)
  • Eye Inside Diameter 20.000 mm
    (Equiv. 0.787 in.)
  • Rated Capacity 136 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details

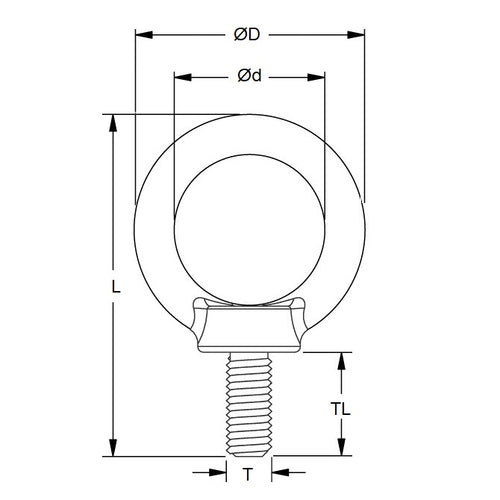

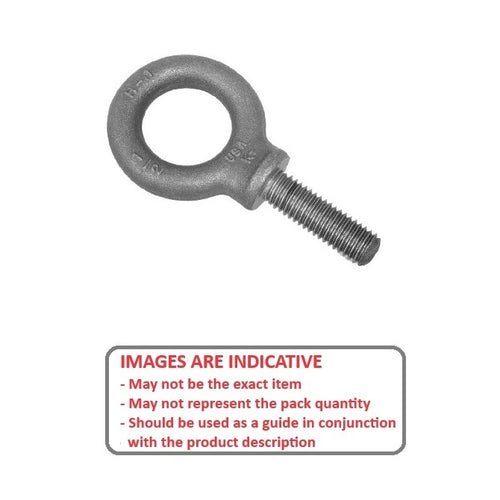

    MEB-8RSDiagramMEB-8RSImage
