KM080M-050-3L-SAF20 - Datasheet
MBA
Category Information

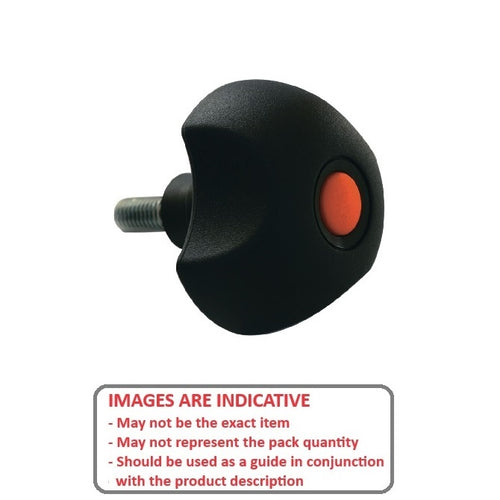

Knobs - Lobe - Three Lobe - Male - SafetySafety Male Three Lobe Lobe Knobs. Knob only turns when pressed downwards and turned simultaneously to avoid involuntary turning. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M8 (8x1.25mm)

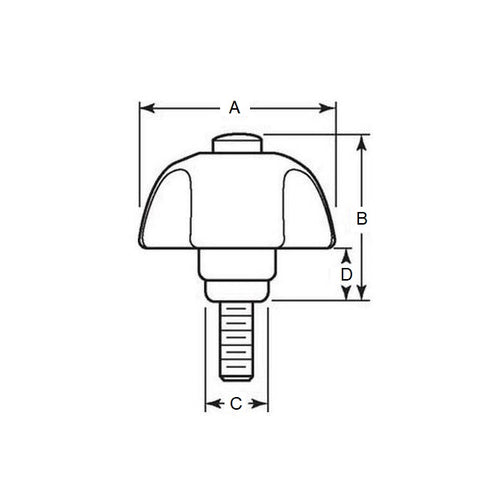

- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
20.0
mm
(Equiv. 0.787 in.) - Hub Diameter (C) 19.50 mm
- Hub Length Resting (D) 17.50 mm
- Hub Length Working (D) 13.50 mm
- Steel
- Material Plastic with Insert
Product Compliance and Data
Additional Resources
Cross References
- RST-211
- RST211
