KF080M-040-7LQA - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Quick Acting

Quick Acting Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 40.00 mm
    (Equiv. 1.575 in.)
  • Colour Black
  • Hub Diameter (D) 13.50 mm
  • Hub Length (C) 13.00 mm
  • Knob Height (B) 24.50 mm
  • E 8.30 mm
  • Material Steel Hub
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KPB1131
  • KPB-1131
View full details

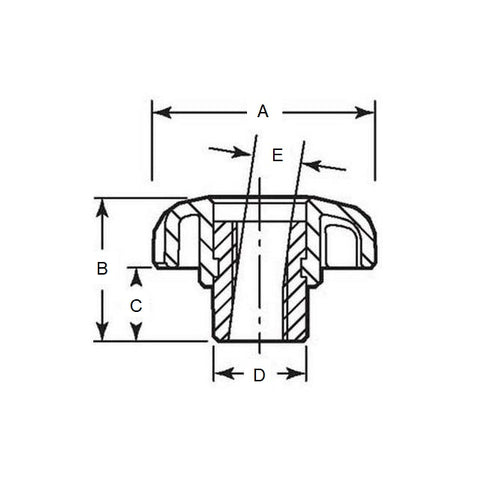

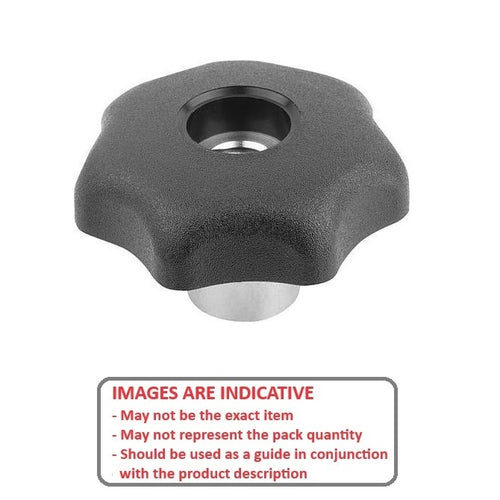

KF080M-040-7LQADiagramKF080M-040-7LQAImage
