KF080M-040-6L-PSS - Datasheet
MBA
Category Information

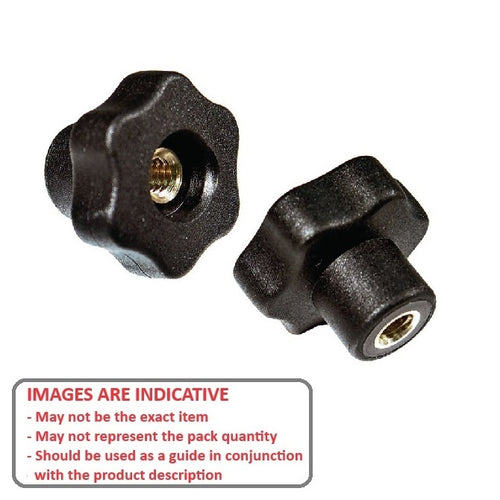

Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M8 (8x1.25mm)

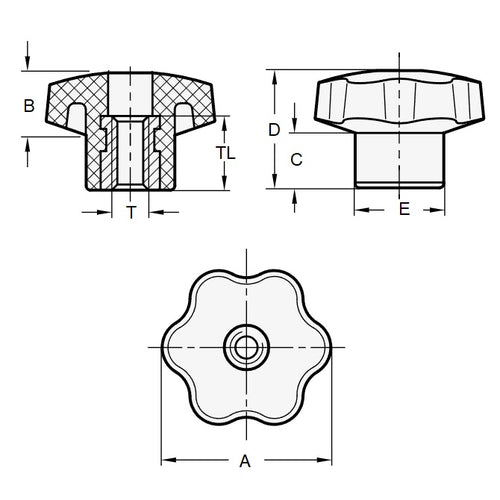

- Head Diameter (A)
40.00
mm
(Equiv. 1.575 in.) - Thread Length
18.0
mm
(Equiv. 0.709 in.) - Colour Black
- Hub Diameter (E) 17.00 mm
- Hub Length (C) 12.50 mm
- Knob Height (D) 24.50 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- JCL-3550
- JCL3550
