KF080M-040-6L-PBR - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 40.00 mm
  • Thread Length 18.0 mm
  • Colour Black
  • Hub Diameter (E) 17.00 mm
  • Hub Length (C) 12.50 mm
  • Knob Height (D) 24.50 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 4273T82
  • Reid Tool® JCL-3515
  • JCL3515
View full details

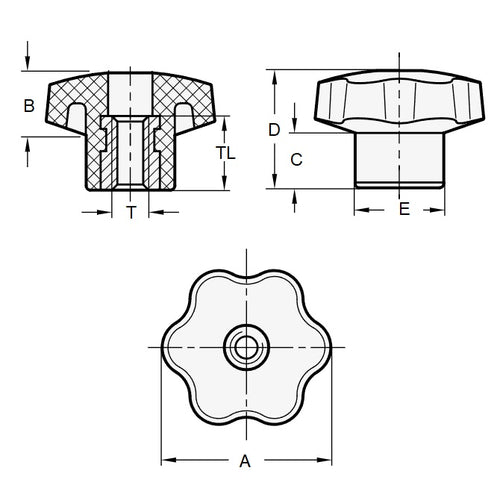

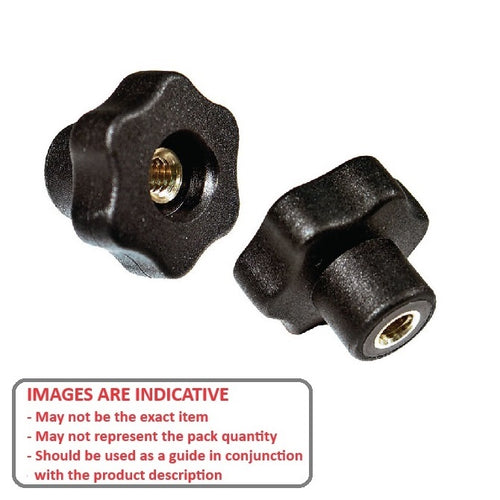

KF080M-040-6L-PBRDiagramKF080M-040-6L-PBRImage
