KF080M-032-CH - Datasheet

MBA

Category Information

Knobs - Cross - Female - Through Hole

Through Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads. Through Hole.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 31.75 mm
    (Equiv. 1.25 in.)
  • Thread Length 13.1 mm
    (Equiv. 0.516 in.)
  • Colour Black
  • Hub Diameter (E) 15.88 mm
  • Hub Length (D) 9.53 mm
  • Knob Height (C) 22.23
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • DK1179
  • DK-1179
View full details

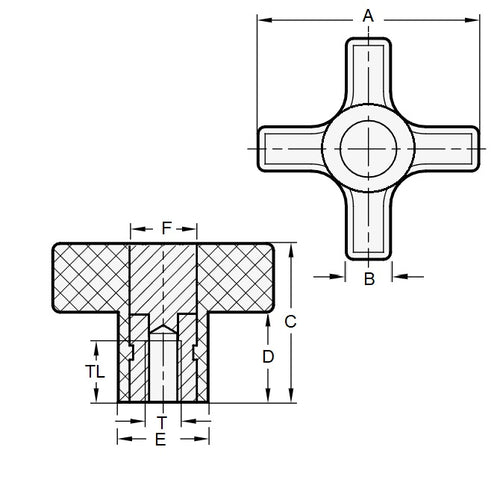

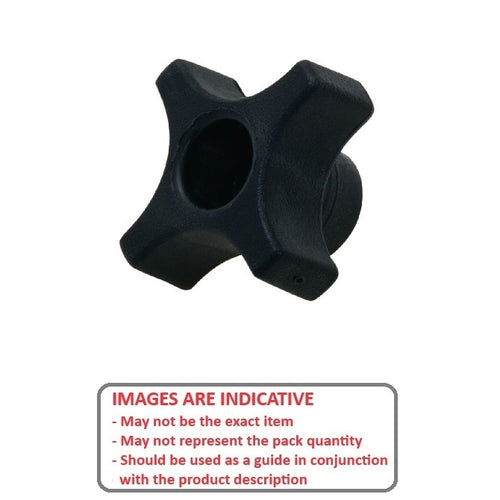

KF080M-032-CHDiagramKF080M-032-CHImage
