KM080M-070-W - Datasheet
MBA
Category Information

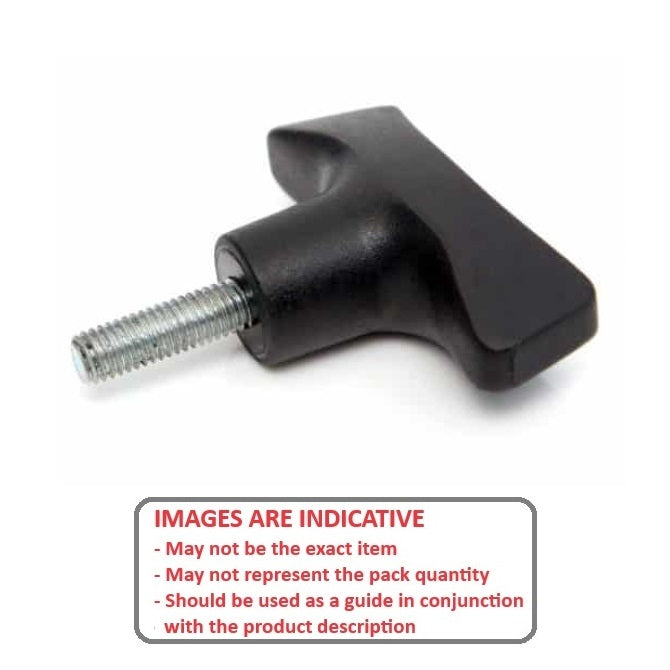

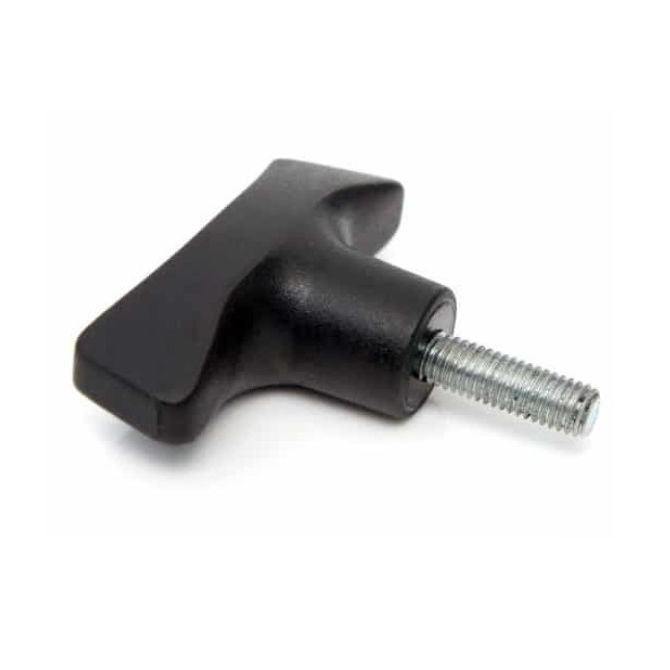

Knobs - Wing - MaleMale Wing Knobs. Plastic (high grade gloss black phenolic) with Steel Insert.
- Temperature Range: -30oC to +140oC.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

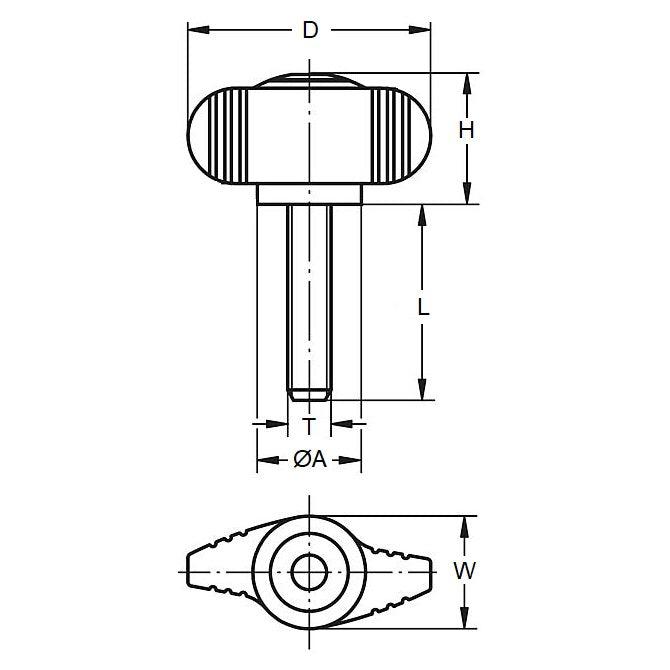

- Thread Size : M8 (8x1.25mm)
- Knob Length (D)
70.00
mm
(Equiv. 2.756 in.) - Thread Length (L)
30.0
mm
(Equiv. 1.181 in.) - Head Height (H) 25.0 mm
- Shank Diameter (A) 18.0 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 712-040
- 712040
