KM080M-032-KND30-PH - Datasheet

MBA

Category Information

Knobs - Disc - Male Knurled Plastic

Male Knurled Plastic Disc Knobs. This is the main category in this series

    Product Data

    • Thread Size : M8 (8x1.25mm)
    • Head Diameter (A) 32.0 mm
      (Equiv. 1.26 in.)
    • Thread Length 30.0 mm
      (Equiv. 1.181 in.)
    • Colour Black
    • Style Disc
    • Hub Diameter (E) 22.00 mm
    • Hub Length (D) 22.00 mm
    • Knob Height (C) 20.0
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-NDXM8-30
    • CNDXM830
    View full details

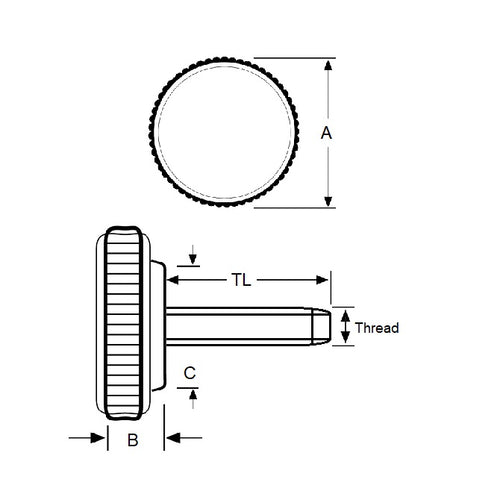

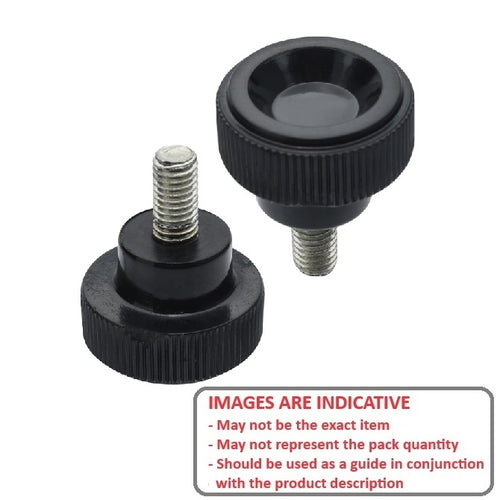

    KM080M-032-KND30-PHDiagramKM080M-032-KND30-PHImage
