KF080M-032-7L-P - Datasheet
MBA
Category Information

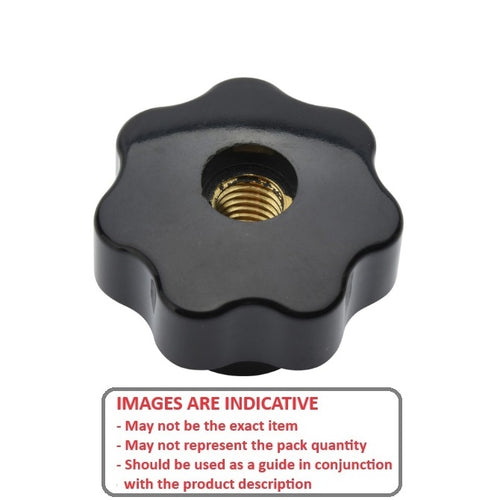

Knobs - Lobe - Seven Lobe - Female - Through HoleThrough Hole Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M8 (8x1.25mm) + 0.10 / - 0.00

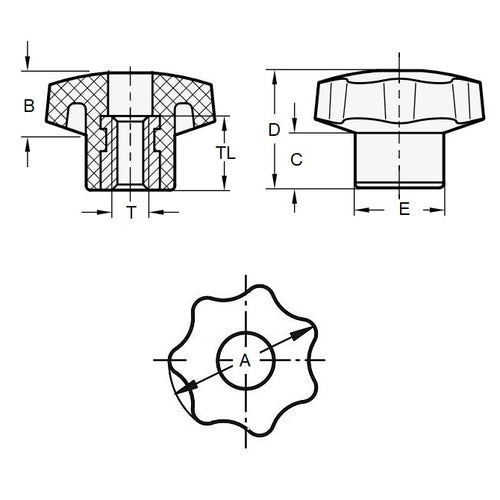

- Head Diameter (A)
32.0
mm
+ 0.00 / - 0.10
(Equiv. 1.26 in.) - Thread Length
20.0
mm
+ 0.00 / - 0.12
(Equiv. 0.787 in.) - Colour Black
- Hub Diameter (C) 18.00 mm
- Hub Length (D) 13.00 mm
- Knob Height (B) 26.0 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NLZT8
- CNLZT8
