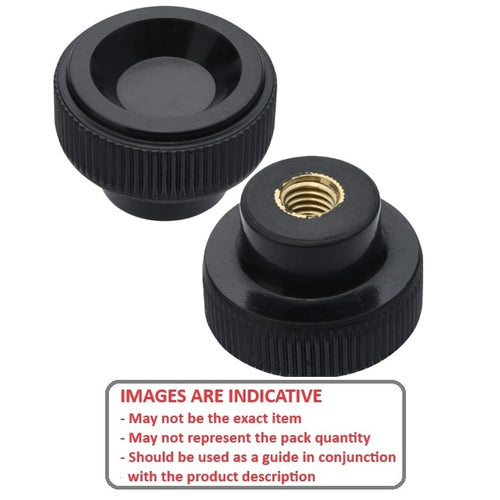

KF080M-032-KND-PH - Datasheet

MBA

Product Data

• Thread Size : M8 (8x1.25mm) _{+ 0.10 / - 0.00}

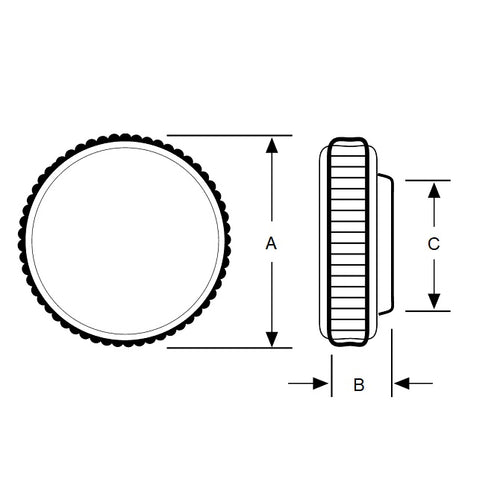

• Head Diameter (A) 32.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 1.26 in.)
• Thread Length 15.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.591 in.)
• Colour Black
• Style Disc
• Hub Diameter (E) 20.00 mm
• Hub Length (D) 9.00 mm
• Knob Height (C) 22.0
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NDXF8
• CNDXF8
