SPANC-080M-040 - Datasheet
MBA
Category Information

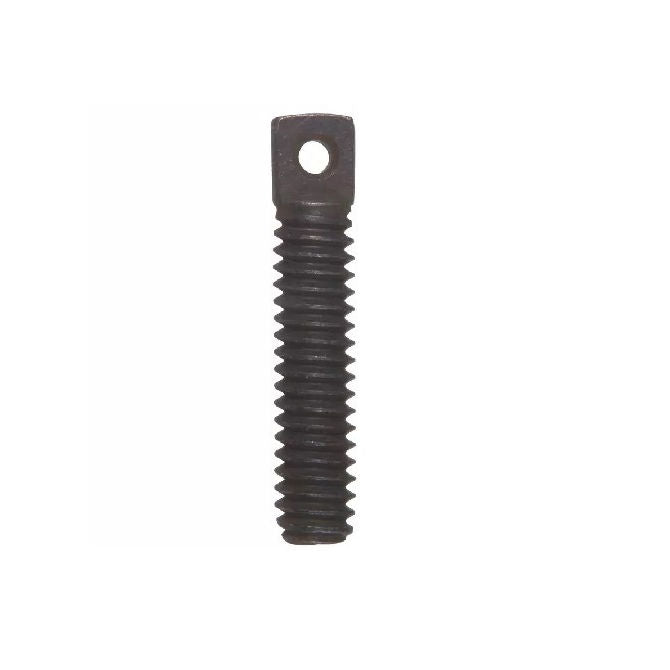

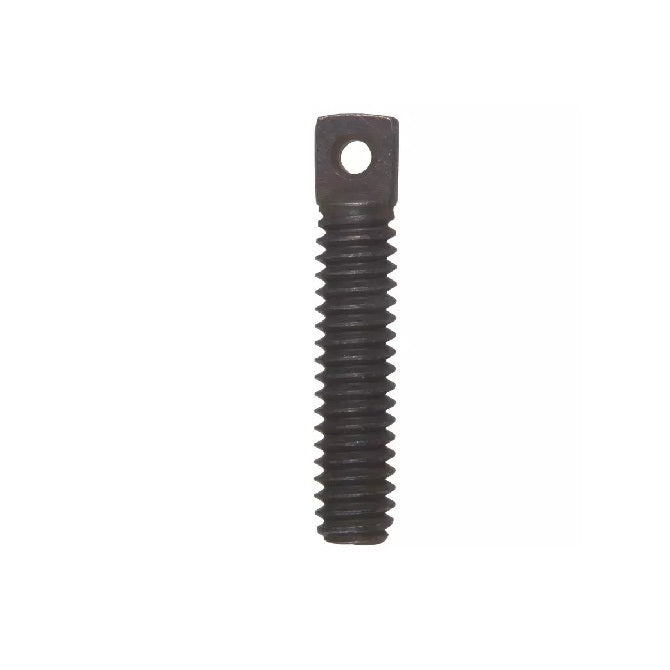

Spring Anchors - SteelSteel Spring Anchors. An economical way to secure the ends of extension springs, and provide easy adjustment.
- C-12114 Steel with Black Oxide Finsh
Product Data
- Thread : M8 (8x1.25mm)

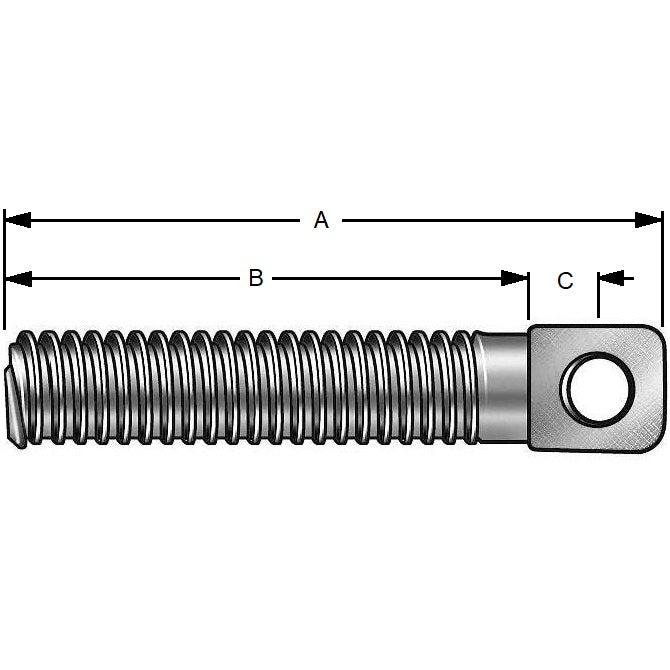

- Overall Length (A)
40.00
mm
(Equiv. 1.575 in.) - Thread Length (B)
28.00
mm
(Equiv. 1.102 in.) - Thread to Centre Eye (C) 3.50 mm
- Hole Size 3.50 mm
- Material Trivalent Chromate S45C Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-AIPO8-40
- CAIPO840
