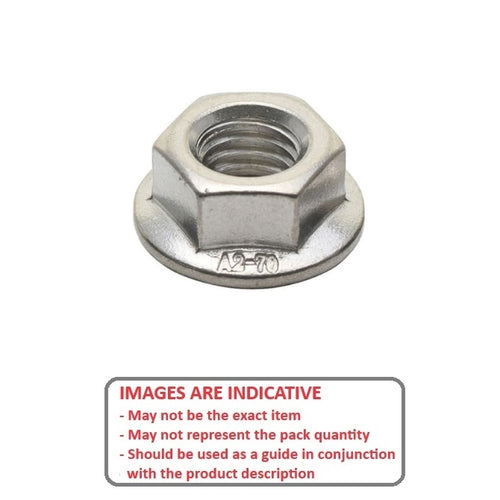

NT080M-F-S4 - Datasheet

MBA

Product Data

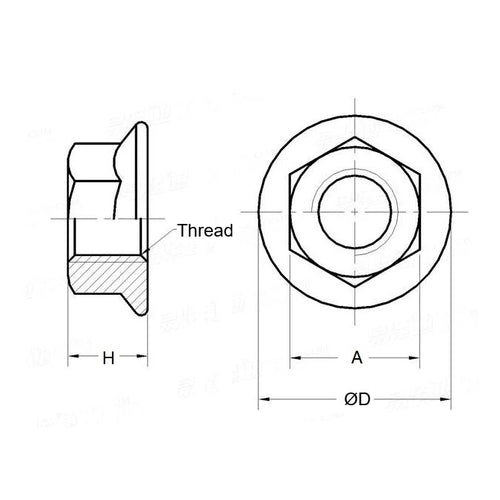

• Thread Size : M8 (8x1.25mm) _{+ 0.10 / - 0.00}
• Material Stainless Steel _{+ 0.00 / - 0.10}
• Height 7.2 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.283 in.)
• Across Flats 12.8 mm
• Flange Diameter 16.8 mm
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi LNFMS8
