KM080M-026-KNU-B - Datasheet
MBA
Category Information

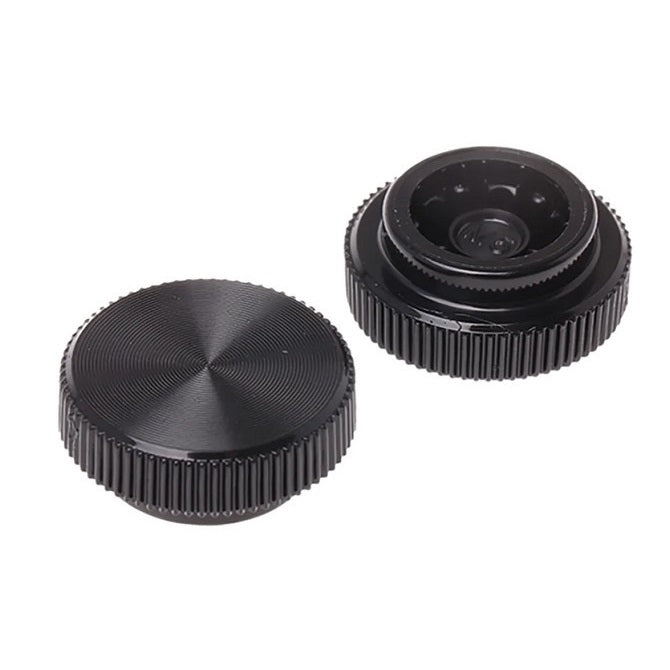

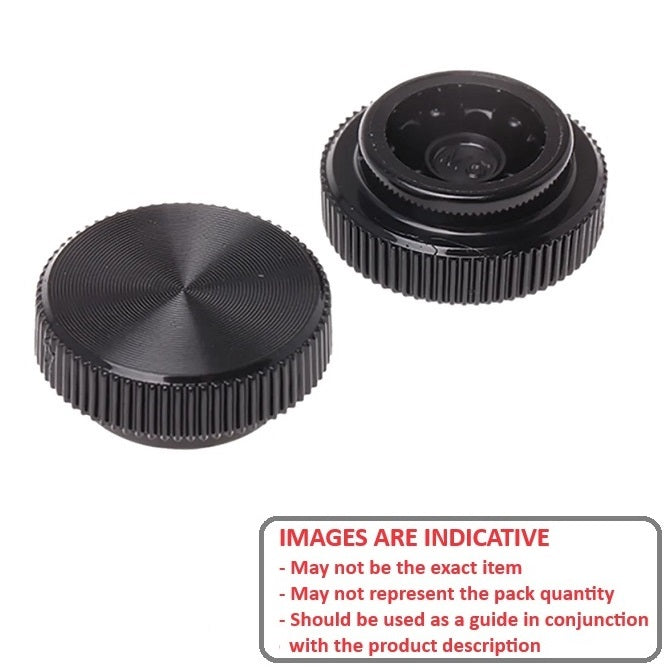

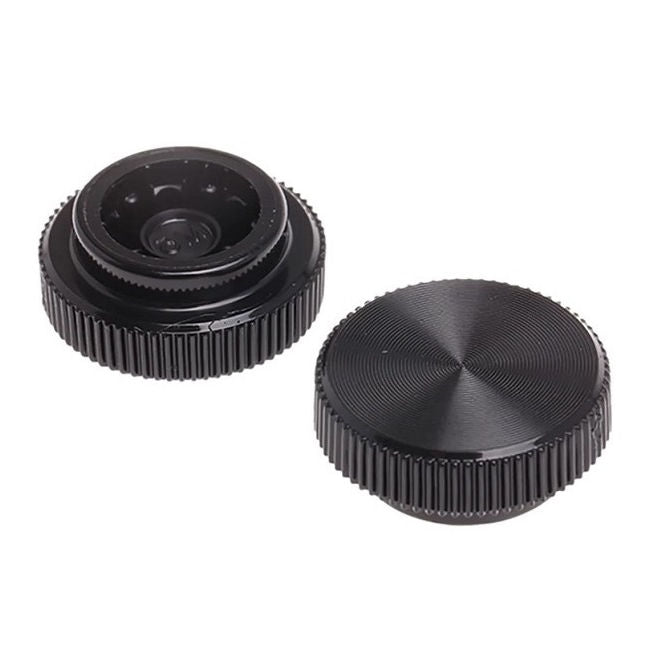

Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
- Suitable Cap Screw Thread : M8 (8.00mm) - Use Own Screw

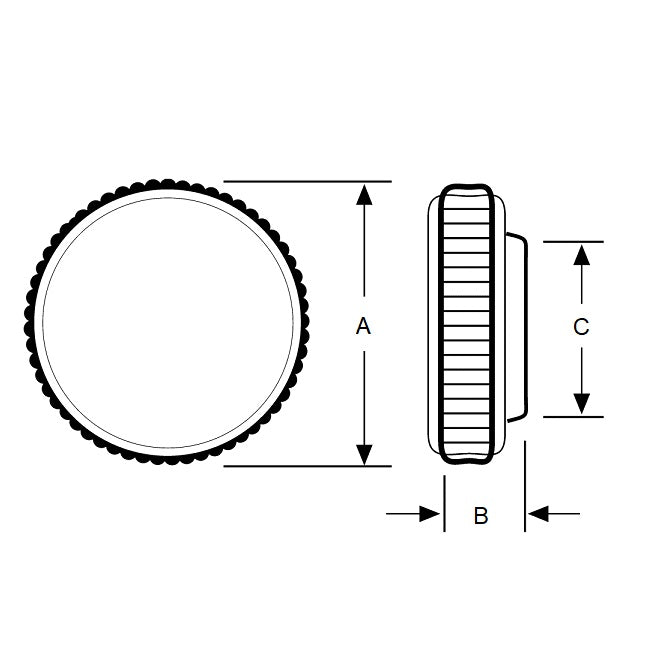

- Head Diameter (A)
26.00
mm
(Equiv. 1.024 in.) - Thickness (B)
9.8
mm
(Equiv. 0.386 in.) - Colour Black
- Style Knurled
- Hub Diameter (C) 16.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91175A066-BLACK
- 91175A066BLACK
- A9M41MB8398933
