KF080M-058-6L - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Standard

Standard Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 58 mm
    (Equiv. 2.283 in.)
  • Thread Length 16 mm
    (Equiv. 0.63 in.)
  • Colour Black
  • Hub Diameter (C) 34.00 mm
  • Hub Length (F) 27.000 mm
  • Knob Height (B) 18.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLJF8
  • CNLJF8
View full details

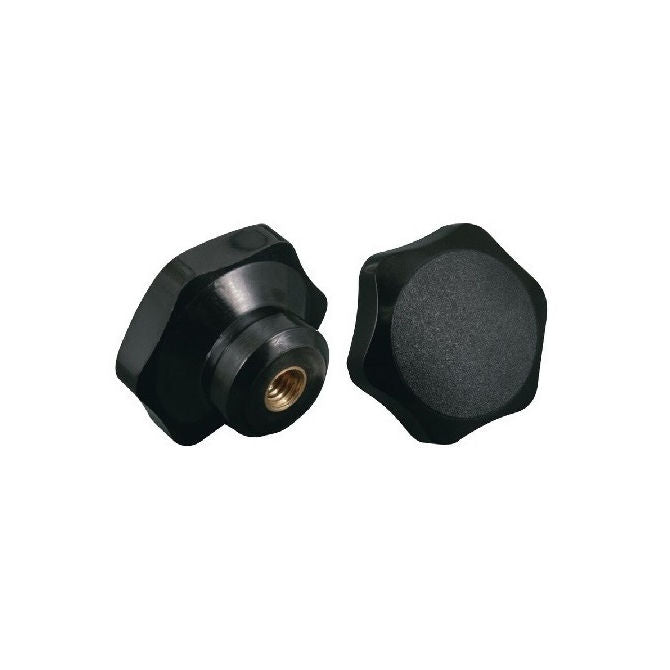

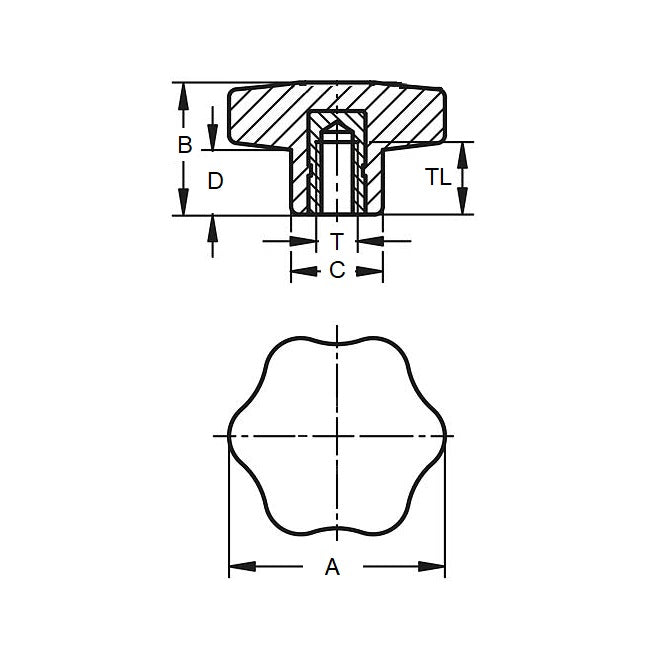

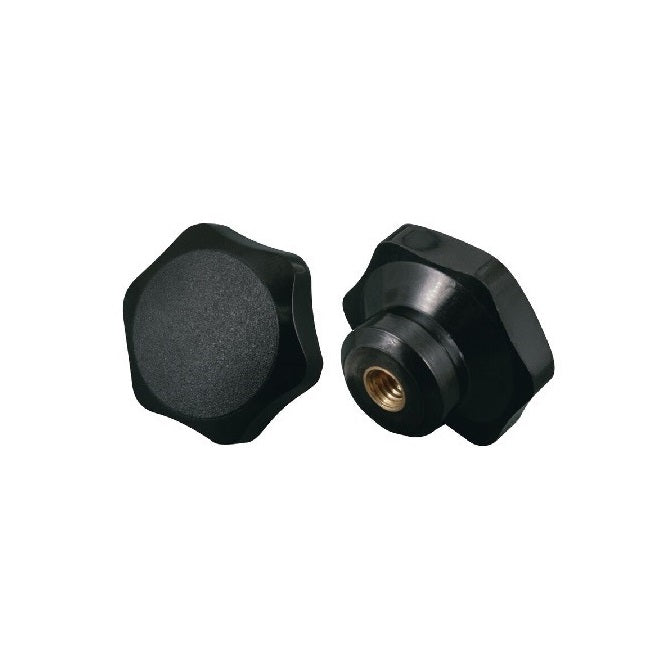

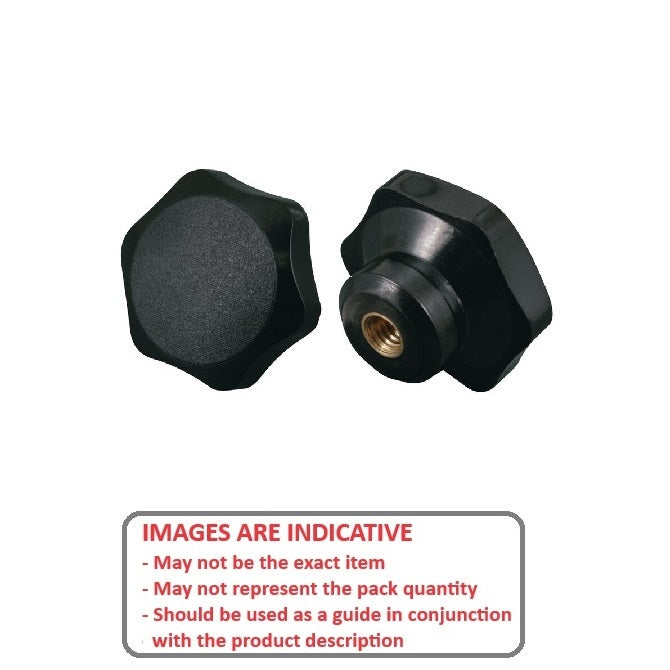

KF080M-058-6LDiagramKF080M-058-6LImage
