KM080M-058-8L15 - Datasheet

MBA

Category Information

Knobs - Lobe - Eight Lobe - Male

Male Eight Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 58 mm
    (Equiv. 2.283 in.)
  • Thread Length 15 mm
    (Equiv. 0.591 in.)
  • Colour Black
  • Hub Diameter © 27.00 mm
  • Hub Length (D) 18.000 mm
  • Knob Height (B) 34.00 mm
  • Material Phenolic and Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLJM8-15
  • CNLJM815
View full details

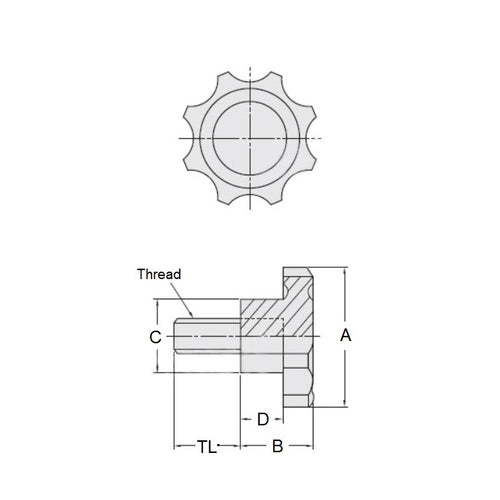

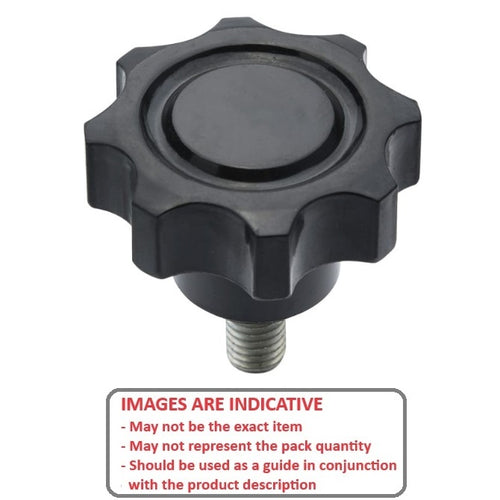

KM080M-058-8L15DiagramKM080M-058-8L15Image
