MSM-080M-080-S4RP - Datasheet
MBA
Category Information

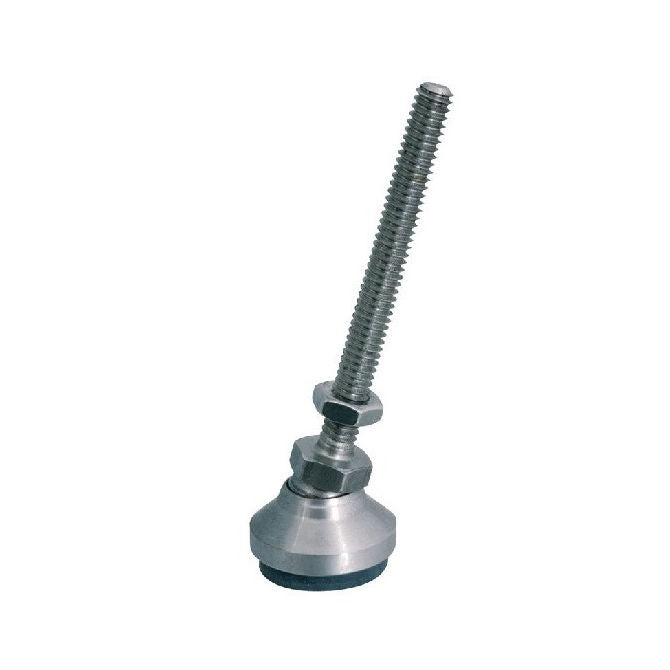

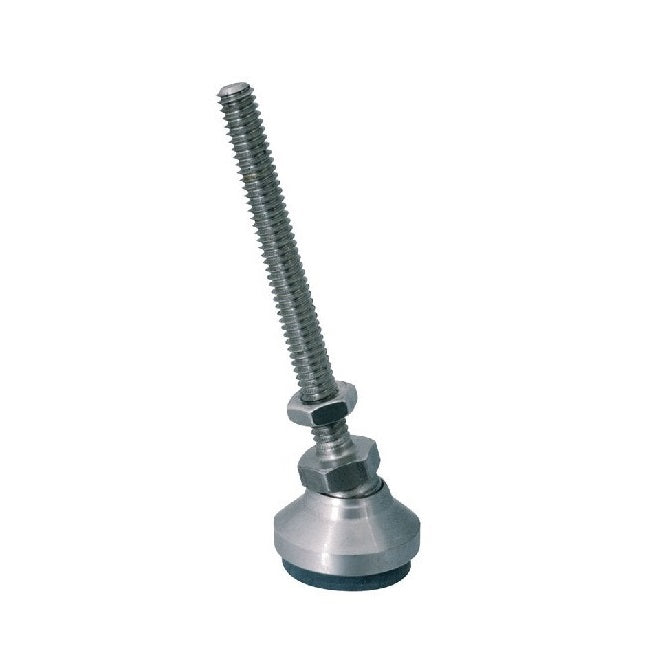

Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

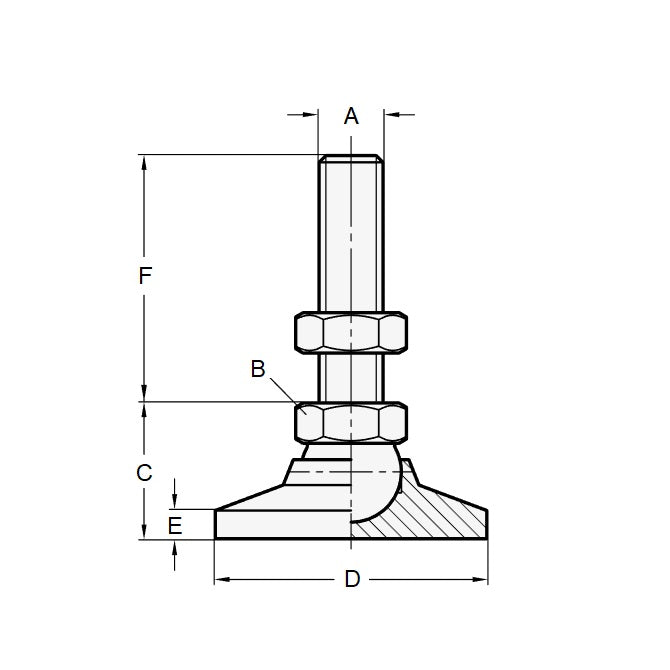

- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
50.00
mm
(Equiv. 1.969 in.) - Foot Height (C)
34.50
mm
(Equiv. 1.358 in.) - Thread Length (F) 80.00 mm
- Base Height (E) 26.00 mm
- Overall Height 114.5 mm
- Load Rating 400 Kg
- Pad Thickness 8.50 mm
- Pad Material Rubber
- Hex Flats (B) 13.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFNVS50-8-80
- CCFJFNVS50880
