MLM-080M-080-ZPP-ECO - Datasheet
ECO
Category Information

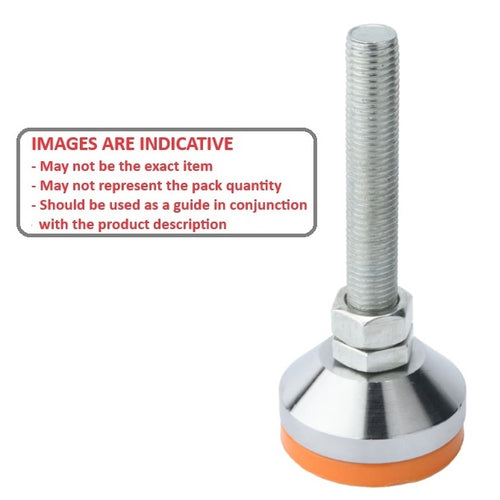

Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.

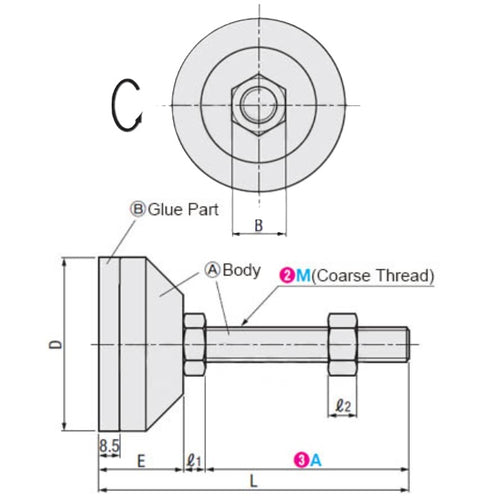

Product Data
- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
50.0
mm
(Equiv. 1.969 in.) - Foot Height (C)
33.5
mm
(Equiv. 1.319 in.) - Thread Length (F) 80.0 mm
- Base Height (E) 25.0 mm
- Overall Height 113.5 mm
- Load Rating 39.20 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Hex Flats (B) 13 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CPVC50-8-80
- CCPVC50880
