MLM-080M-060-ZRP-ECO - Datasheet
ECO
Category Information

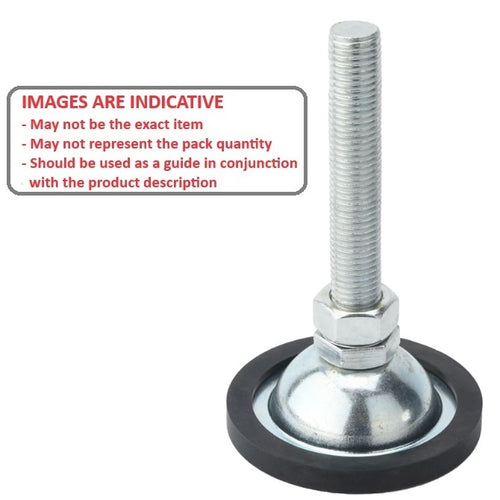

Mounts - Levelling Studded - Economy - Rubber PaddedRubber Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

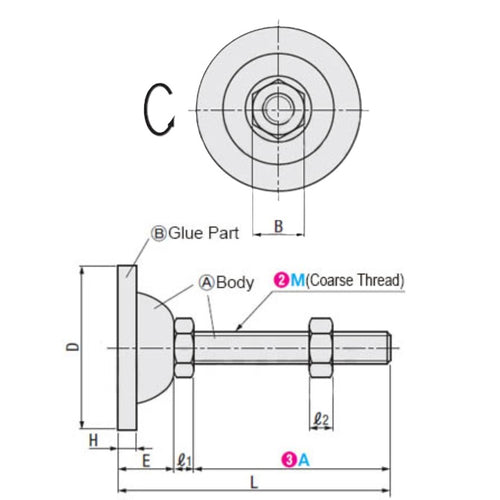

- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
45.0
mm
(Equiv. 1.772 in.) - Foot Height (C)
21.0
mm
(Equiv. 0.827 in.) - Thread Length (F) 60.0 mm
- Base Height (E) 15.0 mm
- Overall Height 81.0 mm
- Load Rating 20.58 Kg
- Pad Thickness 6 mm
- Pad Material Rubber
- Hex Flats (B) 13 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJGN8-60
- CCFJGN860
