KM080M-040-3L30 - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 40 mm
    (Equiv. 1.575 in.)
  • Thread Length 30 mm
    (Equiv. 1.181 in.)
  • Colour Black
  • Hub Diameter (C) 22.00 mm
  • Hub Length (D) 10.000 mm
  • Knob Height (B) 21.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJGM8-30
  • CNSJGM830
View full details

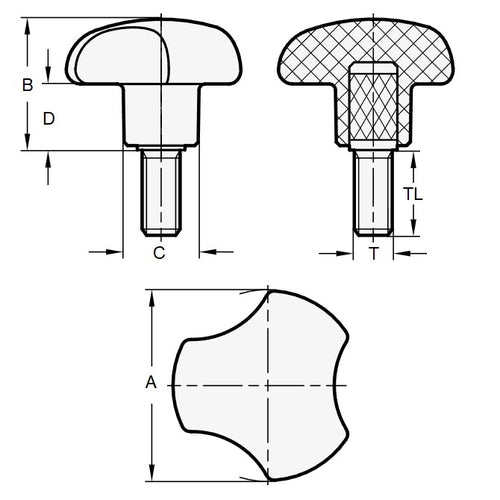

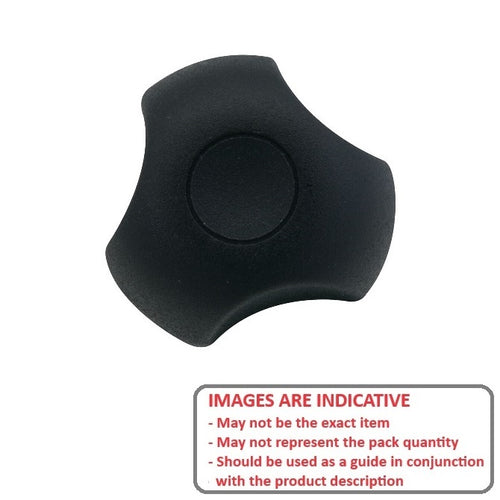

KM080M-040-3L30DiagramKM080M-040-3L30Image
