KF080M-040-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Standard

Standard Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 40 mm
    (Equiv. 1.575 in.)
  • Thread Length 16 mm
    (Equiv. 0.63 in.)
  • Colour Black
  • Hub Diameter (C) 21.00 mm
  • Hub Length (D) 22.000 mm
  • 10.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJGF8
  • CNSJGF8
View full details

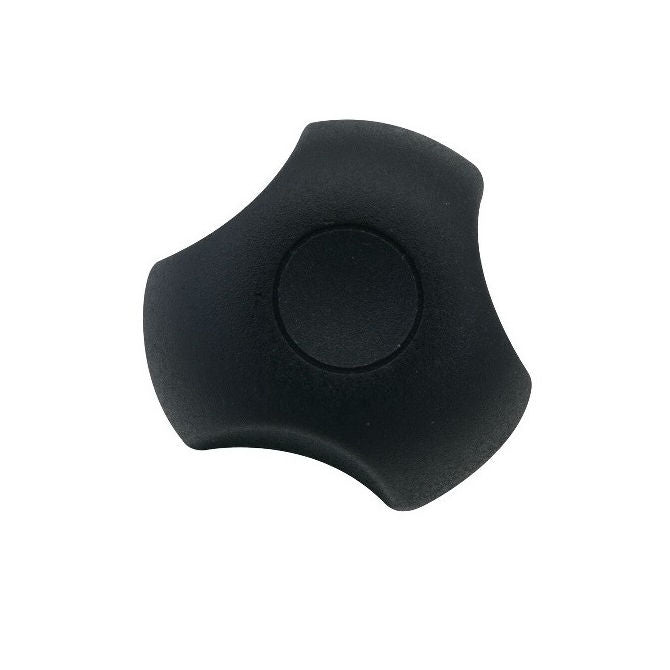

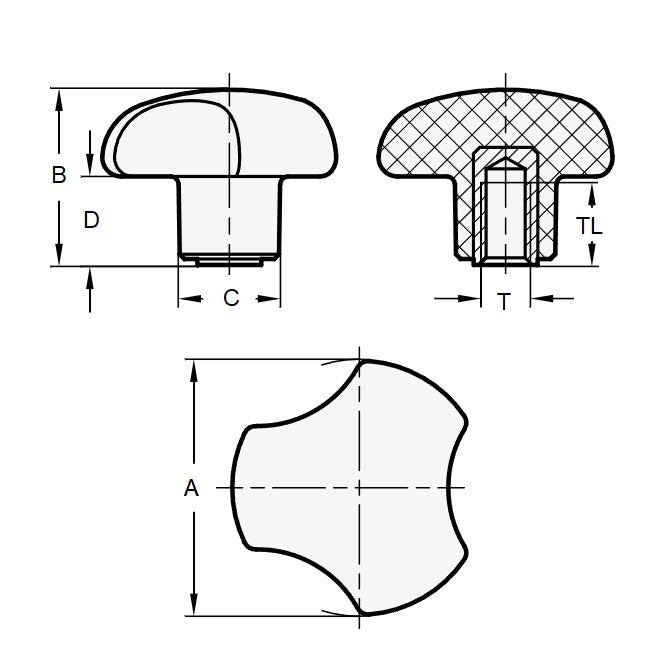

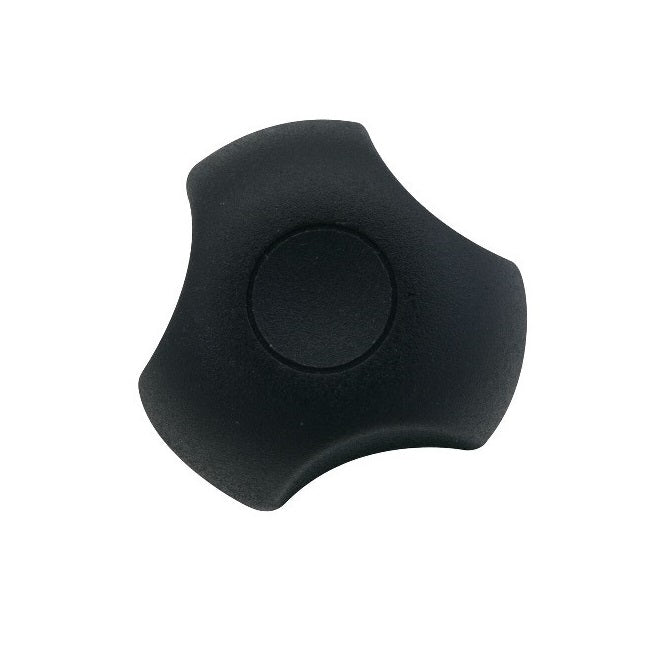

KF080M-040-3LDiagramKF080M-040-3LImage
