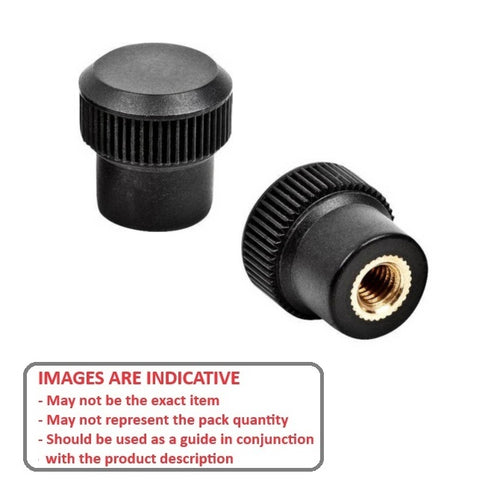

KF080M-032-KN-PH - Datasheet

MBA

Product Data

• Thread Size : M8 (8x1.25mm)

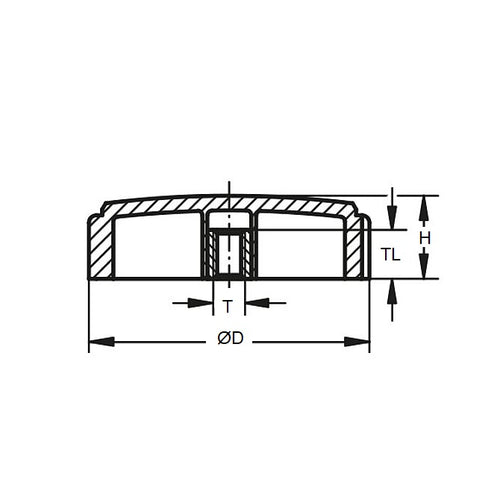

• Head Diameter (D) 32.000 mm
  (Equiv. 1.26 in.)
• Screw Depth (L) 15.000 mm
  (Equiv. 0.591 in.)
• Colour Black
• Brass
• Top Dia. (D1) 20.00 mm
• Hub Length (H1) 18.000 mm
• 6.50
• Material Phenolic

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NZWF8
• CNZWF8
